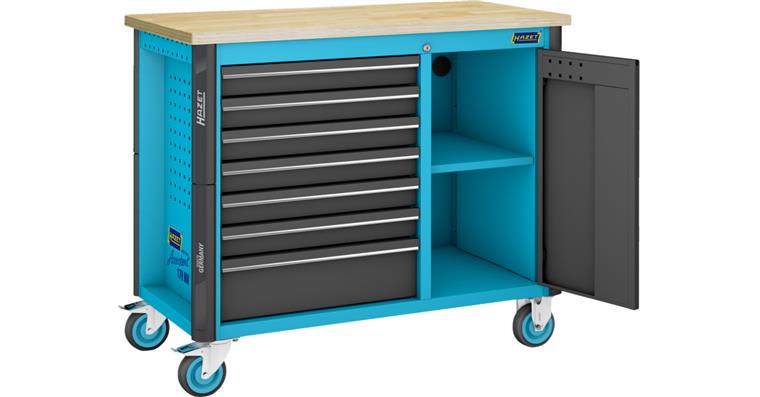

HAZET - Wheeled workbench 1 door 7 drawers type 179 NW-7

Execution

Replaceable birch multiplex wood worktop
Cable opening in rear wall allows, for example, charging of battery devices when the door is closed
Optimised, yielding edge protection on all four corners - internal damping design for real impact protection
Flexible vice assembly (front, right, left), e.g. HAZET 2175 N according to drilling template specification
Large, heavy-duty wheels (dia. 125 mm) with precision ball bearings and double ball race in swivel bearing, 2 swivel castors with double stop, Braked castor prevents trolley rolling away, braked swivel bearing prevents the swivel castors from swivelling, e.g. on inclined surfaces, guard ring prevents the ingress of dirt and threads, grey trackless elastic rollers run smoothly
Central lock (central locking and cylinder lock) simultaneously locks door and drawers, 180° rotation, prevents the key from breaking off
100 % extension with ball-bearing-mounted telescopic rails, self-closing
1 heavy-duty drawer, load capacity 40 kg, 161 mm deep
6 drawers, load capacity 25 kg, 76 mm deep
2 storage areas in the shelf unit, top: 15 kg/bottom: 35 kg

Advantage

Completely welded construction of the entire body for rigorous daily use in the workshop
Additional hole grid for tool holders, e.g. HAZET 112-230
Only one key to simultaneously lock door and drawers (scope of delivery: 2 keys)
Reciprocal drawer lock minimises the risk of tipping
Easy movement even with high dynamic loads

Delivery
Incl. 9x adjustable intermediate shelf and permanently mounted door

Notes

For vertical perforated panel for tools, see art. no. 1081713 401

For shelf drawer, see art. no. 1081713 402

For laptop holder, see art. no. 1081713 403

Brand: HAZET
Design: Empty
Number of drawers: 7 PCS
Drawer width (inner dimension): 522 mm
Load-carrying capacity per drawer: 25 kg
Drawer front height: 6 x 80 mm | 1 x 165 mm
Pullout type: Full extension
Drawer depth (inner dimension): 398 mm
Number of doors: 1 PCS
Model: 179 NW-7
Working height: 964 mm
Plate length: 1150 mm
Plate depth: 600 mm
Material of worktop: Multiplex birch
Plate thickness: 30 mm
With single pull-out safety brake: No
With single-locking drawers: Yes
On castors: Yes
Moving device, can be lowered: No
With sliding handle: No
Load-carrying capacity: 750 kg
Dynamic load-carrying capacity: 500 kg
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: Polyurethane
Wheel diameter: 125 mm
Central locking: Yes
Lock type: Cylinder lock
Material: Sheet steel
Cabinet colour: Blue
Colour of front: Black
Surface: Powder-coated

Wheeled workbench 1 door 7 drawers type 179 NW-7
