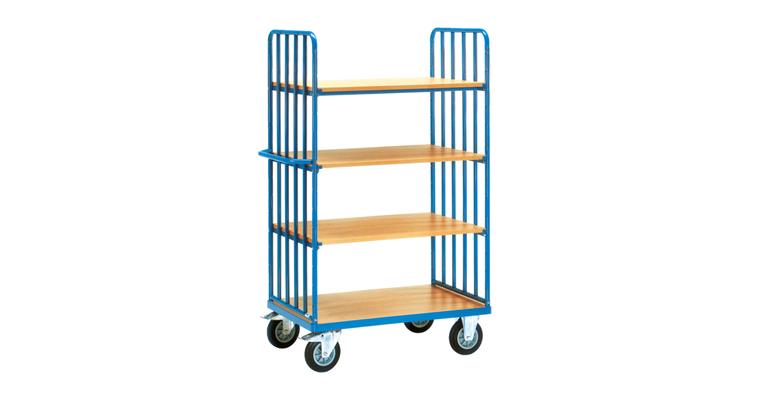

Shelf trolley with pipe struts 4 shelves load cap. 600 kg 1200x800 mm RAL 5007

Shelf trolley with pipe struts 4 shelves load cap. 600 kg 1200x800 mm RAL 5007

Shelf trolley with pipe struts 4 shelves load cap. 600 kg 1200x800 mm RAL 5007
Video
Item no: 1081709 102

Online price:

Availability on demand

Application
For transporting non-stacking goods and materials, for continuous use in industrial applications.

Execution
  • Modular system, can be completely fixed with screws
  • Steel tube/profile steel welded
  • Front walls with vertical tube struts (distance approx. 130 mm)
  • 1 fixed load area
  • Rigid sandwich panels

Advantage
  • Robust design and high load capacity ensure a long service life even when used for high industrial loads
  • Multiple load areas provide ample storage space for non-stacking goods and crates
  • FETRA plug-and-screw design allows trolleys and accessories to be modified easily
  • Large high-quality castors for good running properties
  • Vertical tubular struts prevent parts falling forwards or backwards

Delivery
Disassembled


Brand: FETRA
Loading surface size: 1200 x 800 mm
Number of loading surfaces: 4 PCS
Loading surface height: 669 mm | 1069 mm | 1469 mm | 269 mm
Material of loading surface: Wood
Load-carrying capacity: 600 kg
Load-carrying capacity of loading surfaces: 90 kg
Length: 1369 mm
Width: 809 mm
Height: 1800 mm
Number of panels: 2 PCS
Material of wall: Strut brace
Grid dimension of upper ends: 100 mm
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Total stop optional: Yes
Wheel width: 40 mm
Wheel diameter: 200 mm
Material of wheel: TPE
Design: With strut braces on front sides
With handle: Yes
Colour: Brilliant blue RAL 5007
Surface: Powder-coated
EN standard: 1757-3

Manufacturer part no.: 8313

EAN no.: 4017976083131
