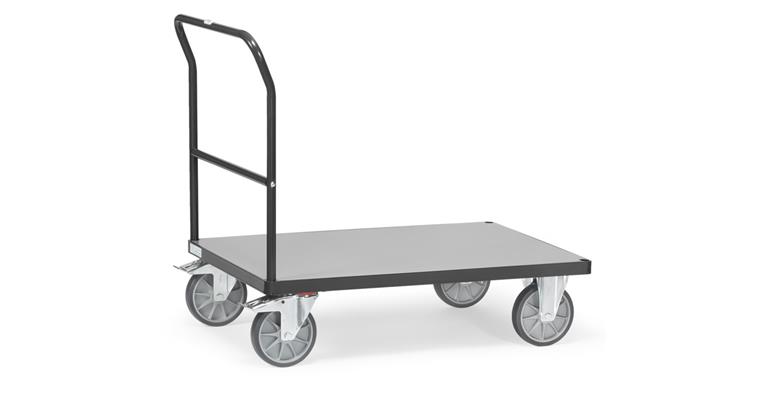

Push handle trolley steel tube loading surface 850x500 mm load 500 kg RAL 7016

Push handle trolley steel tube loading surface 850x500 mm load 500 kg RAL 7016

Push handle trolley steel tube loading surface 850x500 mm load 500 kg RAL 7016
Item no: 1081706 300

Online price:

Availability on demand

Application
For transporting heavy, bulky goods and materials, for continuous use in industrial applications.

Execution
  • Modular system, can be completely fixed with screws
  • steel tube/profile steel welded
  • Other tyres upon request

Advantage
  • Robust design and high load capacity ensure a long service life even when used for high industrial loads
  • FETRA plug-and-screw design allows trolleys and accessories to be modified easily


Brand: FETRA
Load-carrying capacity: 500 kg
Length x width x height: 975 x 509 x 948 mm
Material of loading surface: Wood composite board
Loading surface size: 850 x 500 mm
Loading surface height: 228 mm
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
Number of loading surfaces: 1 PCS
With wheel lock: Yes
Total stop optional: Yes
Wheel width: 40 mm
Wheel diameter: 160 mm
Material of wheel: TPE
Colour: Anthracite grey RAL 7016
Surface: Powder-coated
Design: With bow handle
EN standard: 1757-3
Height: 948 mm
Length: 975 mm
Loading surface length: 850 mm
Loading surface width: 500 mm
Width: 509 mm
Folding: No

Manufacturer part no.: 2500-7016

EAN no.: 4017976825007

Product Datasheet
