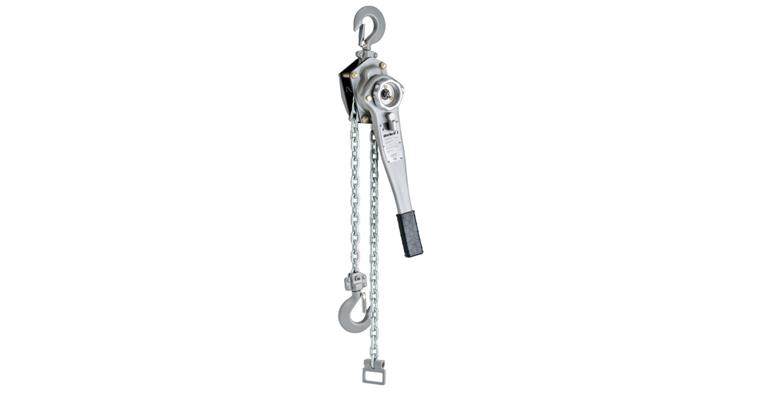

Multi-purpose device Silverline HZ S, one chain strand, load capacity 750 kg

Multi-purpose device Silverline HZ S, one chain strand, load capacity 750 kg

Multi-purpose device Silverline HZ S, one chain strand, load capacity 750 kg
Item no: 1080173 101

Online price:

Still in stock: 5

Execution
  • A low-maintenance, easy-to-use device
  • Inexpensive and economical
  • End-to-end stud bolts between the side panels and cover mounting ensure stability
  • Chain guide rollers allow for faultless running of the load chain
  • Bearings in the side panels guarantee durability and ease of maintenance
  • The standard zinc-plated load chain provides additional corrosion protection
  • Forged suspension and load hooks made of high-alloyed, heat-treated steel that is resistant to ageing will open without breaking in the event of an overload

Notes
This hoist is not intended for transporting persons and must not be used for this purpose.

Brand: YALE
Nominal chain thickness: 18 mm
Stroke force at nominal load: 20 daN
Stroke height per lever revolution: 20 mm
Chain diameter: 6 mm
Load-carrying capacity: 750 kg
Min. hook spacing: 330 mm
Length of lever: 280 mm
Lift height: 1500 mm
Number of load chains: 1 PCS
Weight: 7 kg

Manufacturer part no.: N02300113

EAN no.: 4053981889290

Product Datasheet
