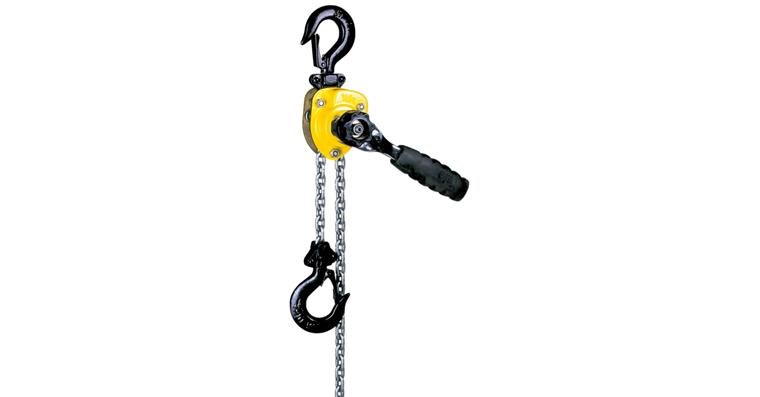

Multi-purpose lever hoist dev. Handy 250, rnd stl ch. sh/stl lift 1.5m ld 250kg

Multi-purpose lever hoist dev. Handy 250, rnd stl ch. sh/stl lift 1.5m ld 250kg

Multi-purpose lever hoist dev. Handy 250, rnd stl ch. sh/stl lift 1.5m ld 250kg
Item no: 1080159 101

Online price:

Available for immediate delivery

Application
For pulling, lifting and clamping by means of a hand lever.

Execution
  • The smallest and lightest multi-purpose device
  • With round steel chain
  • Housing made of sheet steel
  • Short hand lever, zinc-plated
  • Free-chaining
  • Automatic threaded mechanical brake
  • Hand wheel for fast passage of the unloaded chain
  • Dustproof, closed housing
  • Standard lift 1.5 m
  • 1 load-bearing chain strand

Notes
Further multi-purpose lever hoist devices, 6 t and 10 t load capacity, deliverable on request.

Brand: YALE
Nominal chain thickness: 12 mm
Stroke force at nominal load: 25 daN
Stroke height per lever revolution: 80 mm
Chain diameter: 4 mm
Load-carrying capacity: 250 kg
Min. hook spacing: 240 mm
Length of lever: 160 mm
Lift height: 1500 mm
Number of load chains: 1 PCS
Weight: 2,2 kg

Manufacturer part no.: N02300018

EAN no.: 4025092075039

Product Datasheet
