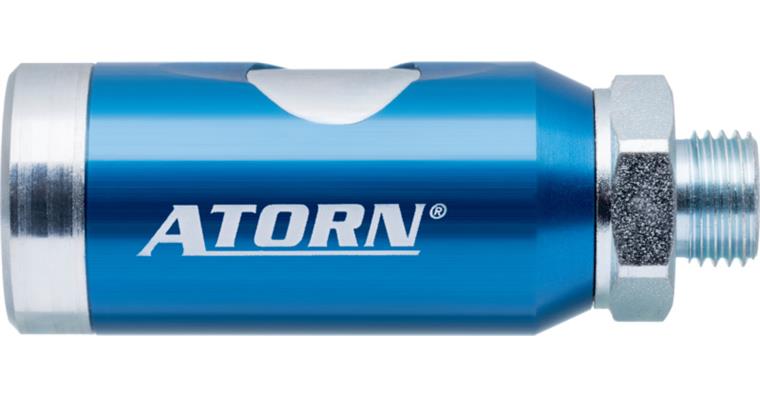

ATORN rotating safety coupling with button, G 1/2 inch with male thread

ATORN rotating safety coupling with button, G 1/2 inch with male thread

ATORN rotating safety coupling with button, G 1/2 inch with male thread
Item no: 1075120 103

Online price:

sold out

Application
For connecting hoses to pneumatic tools and pneumatic machines with push-button actuation.

Execution
  • Material: - Zinc-plated steel connection piece - Housing: Anodised aluminium - Plug: Hardened and zinc-plated steel - Seals: NBR - Spring/balls: Stainless steel
  • silicone-free
  • REACH and RoHs compliant
  • Level 1: By pressing the push-button once, the coupling is bled while the plug remains secured in the sleeve.
  • Level 2: If the push-button is pressed a second time, the plug is unlocked and can be removed hazard-free.

Advantage
  • Particularly characterised by strength and compatibility
  • High flow values with DN 7.4
  • Reliably prevents whiplash effect when decoupling and provides increased safety in the workplace


Brand: ATORN
Type: male thread
Connection thread: G 1/2 inch
DN nominal width: DN 7,4
Flow capacity: 1800 l/min
Max. operating pressure: 16 bar
Min. operating pressure: 1 bar
Thread length: 10 mm
Length: 74,5 mm
Width across flats: 24 mm
Min./max. temperature resistance: -20 to +100 °C

ATORN-No.: 90547013

EAN no.: 4050293433067

Product Datasheet
