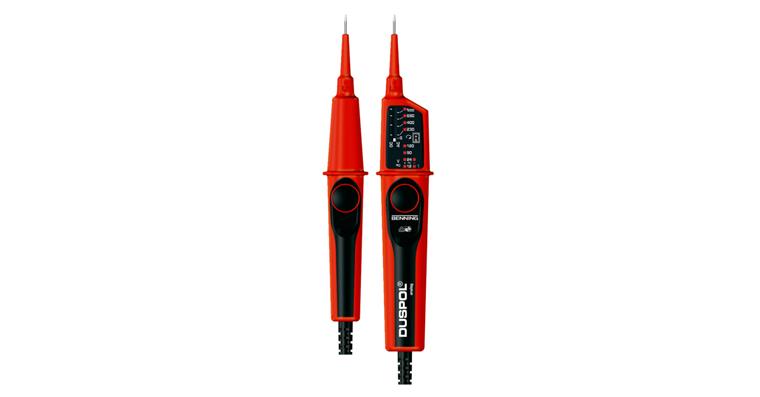

DUSPOL analog plus two-pole voltage and continuity tester 12-1,000 V AC/DC

DUSPOL analog plus two-pole voltage and continuity tester 12-1,000 V AC/DC

DUSPOL analog plus two-pole voltage and continuity tester 12-1,000 V AC/DC
Item no: 1062389 201

Online price:

Available for immediate delivery

Application
Suitable for electrical engineering, industry, maintenance, service (troubleshooting), photovoltaic plants/wind turbines and hybrid vehicle technology.

Execution
  • Voltage 12 V-1,000 V AC/DC (LED/voice coil)
  • Display levels: 12, 24, 50, 120, 230, 400, 690, 1,000 V AC/DC
  • Rotating field direction/phase test (LCD), polarity test (LED)
  • Direct display without pushbutton control (high-impedance test)
  • Load connection via pushbutton (low-impedance test)
  • Intentional tripping of the RCD
  • Vibration alarm in the probe handle
  • IP 65 degree of protection (dust/splash-proof)
  • Rugged housing design with rubberised gripping surface
  • Safety any time, any place: No batteries required
    • Tested and approved in accordance with: DIN EN 61243-3, (VDE 0682-401) 2015

    • Overvoltage category: CAT IV 600 V, CAT III 1,000 V

Advantage
  • Facile à utiliser
  • Affichage fiable
  • Piles non requises
  • Affichage haute tension

Notes
For matching easy-access case, see cat. no. 1062381 104.

Brand: BENNING
Min./max. voltage range DC: 12-1000 V/DC
Type: DUSPOL analog
Min./max. voltage range AC: 12-1000 V/AC
Display: LED/moving coil
Rotating field test: Yes
Phase sequence test: Yes
Polarity testing: Yes
Vibration control system: Yes
IP protection class: IP 65
Length x width x height: 330 x 85 x 55 mm
Weight: 0,350 kg
Overvoltage protection category: CAT IV/600 V | CAT III/1000 V
Approval: Yes
EN standard: 61243-3
Height: 55 mm
Length: 330 mm
Non-contact test: No
Width: 85 mm

Manufacturer part no.: 050261

EAN no.: 4014651502611

Product Datasheet
