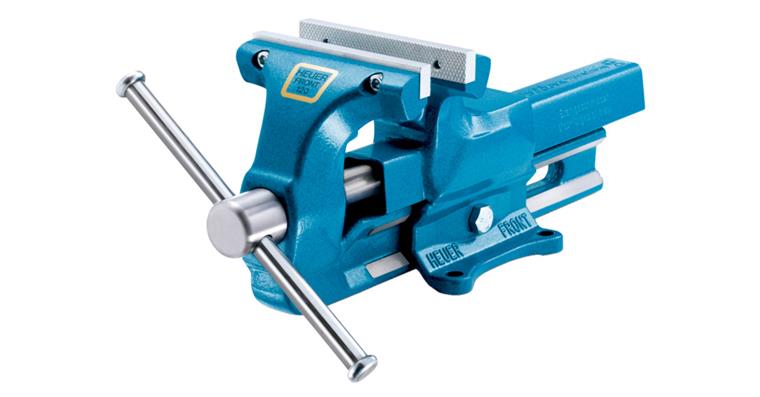

HEUER parallel vice 120 mm interchangeable jaws, blue

HEUER parallel vice 120 mm interchangeable jaws, blue

HEUER parallel vice 120 mm interchangeable jaws, blue
Item no: 1053633 102

Online price:

Availability on demand

Execution
  • With forged-on pipe clamping jaws
  • Extremely deep clamping possible
  • Easy-to-adjust central guide
  • Precision spindle bearing with double trapezoidal thread
  • Hardened, interchangeable steel jaws with smooth and grooved sides

Advantage
  • Completely forged from steel, guaranteed to be unbreakable
  • Covering protects the spindle from dirt and damage
  • Large guide surfaces machined on all sides guarantee precision and a long service life

Notes
For folding and height-adjustment devices, see art. no. 1053646-1053650.
For magnetic protective jaws, see art. no. 1053690-1053694.

Brand: BROCKHAUS HEUER
Jaws width: 120 mm
Min./max. clamping width: 0-150 mm
Clamp in depth: 65 mm
Weight: 9 kg
Colour: Blue
Material: Steel
Min./max. pipe diameter: 16-55 mm
Max. pipe diameter: 55 mm
Min. clamping width: 0 mm
Min. pipe diameter: 16 mm

Manufacturer part no.: HEUER 101120

EAN no.: 4010898101204

Product Datasheet
