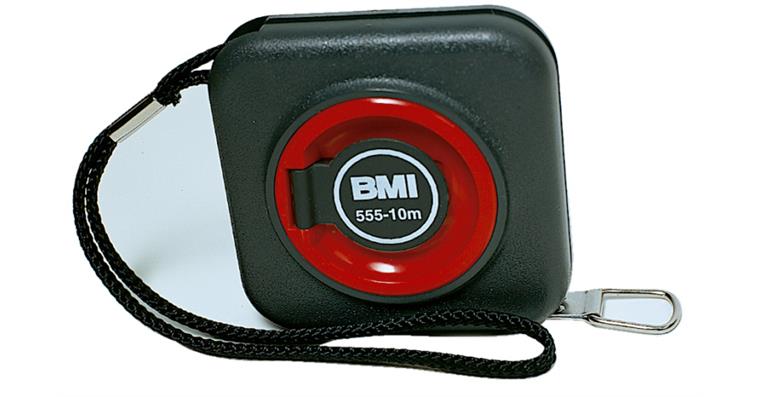

Capsule roll tape measure mm grad. on one side steel tape painted 10 mm L=10 m

Capsule roll tape measure mm grad. on one side steel tape painted 10 mm L=10 m

Capsule roll tape measure mm grad. on one side steel tape painted 10 mm L=10 m
Item no: 1039563 101

Online price:

Available for immediate delivery

Application
For measuring distances with mm precision

Execution
  • Steel tape, painted white
  • mm graduation on one side
  • Hardened spring tape made of carbon steel C75
  • Phosphate coating for corrosion protection
  • White synthetic resin lacquer, fired
  • Printed graduation with red metre markings, fired
  • Synthetic resin lacquer provides wear protection, fired
  • Plastic capsule
  • ABS plastic housing
  • Crank mechanism made of polyamide
    • With carry strap

    • Tolerance in accordance with EC accuracy class II
      (+/-2.3 mm over 10 m length)


Brand: BMI
Calibration Group: AO
Length: 10 m
Width: 10 mm
Accuracy class: II

Manufacturer part no.: 303174010A02

EAN no.: 4007368555100

Product Datasheet
