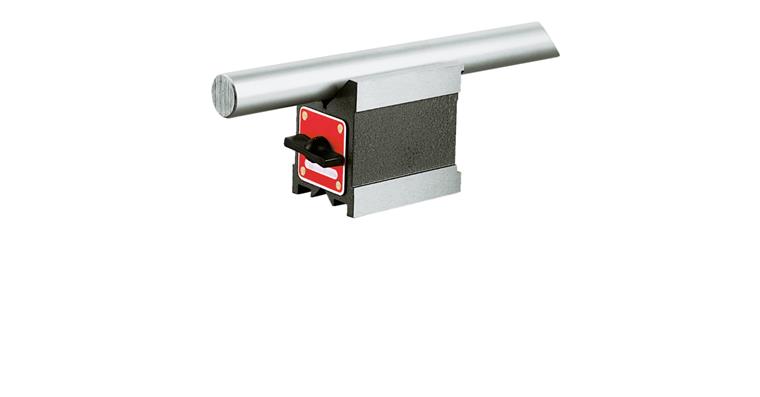

Permanent-magnetic prism block rotary switch 103x70x95 mm

Permanent-magnetic prism block rotary switch 103x70x95 mm

Permanent-magnetic prism block rotary switch 103x70x95 mm
Item no: 1036338 101

Online price:

Available in 6-8 working days.

Application
For checking, marking off and aligning cylindrical parts.

Execution
  • Unhardened
  • Individual
  • 3 clamping surfaces with 2 prisms above and below
  • Including on/off rotary switch


Brand: ---
Length x width x height: 100 x 70 x 95 mm
Flatness tolerance: 0,025 mm
Min./max. workpiece diameter: 6-70 mm
Adherence strength: 2000 N
Angle: 90 Degree

EAN no.: 4024496083893

Product Datasheet
