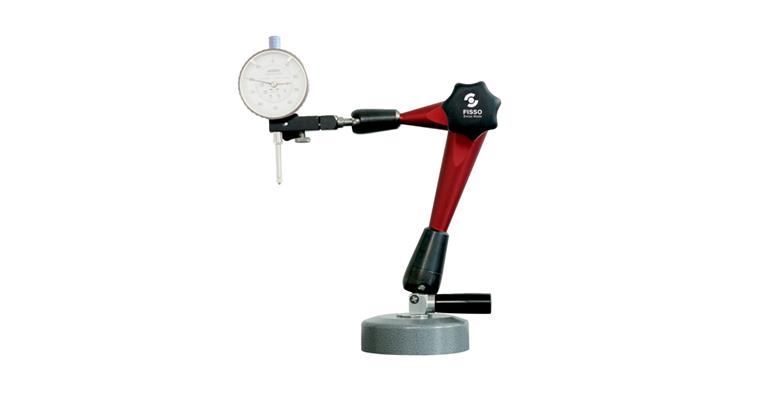

FISSO - 3D articulated measuring stand with vacuum base operating radius 280 mm

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution

Pre-stress prevents unwanted collapse in the loosened state to protect the measuring instruments
Maintenance-free and durable system
With vacuum base, particularly suitable for hard stone slabs and all flat and non-porous surfaces
Short clamping path for optimum operating comfort
Powerful and durable clamping
With continuously adjustable pre-tension
Precise micro-fine adjustment
- Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability
- Maximum precision ball joints made of steel
- Red anodised arm parts made of high-quality light metal
- Micro-fine adjustment made of steel
- Precisely positioned in no time at all
- Friction clamping based on a continuously variable, purely mechanical clamping system
- Articulated stand fits precisely into the ball joint for a high level of stability
Kombinierte Aufnahme für Messuhren, elektronische Messtaster mit Schaft Ø 8 mm und Fühlhebeltaster mit Schwalbenschwanz
Kugelgelenke mit größter Präzision aus Stahl gefertigt
Rot eloxierte Armteile aus hochwertigem Leichtmetall

Advantage

FISSO articulated stands can be easily and precisely placed in any desired position
Zentralspanngriff zum Fixieren und Lösen aller 3 Gelenke
Wartungsfreies und dauerhaftes System
Präzise Mikro-Feineinstellung

Delivery
In expandable polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

3D articulated measuring stand with vacuum base operating radius 280 mm

3D articulated measuring stand with vacuum base operating radius 280 mm

Description

Technical data

More details
