Int. prec. measuring instrument set type SV steel meas. pin size 2, MR 18-160 mm

Int. prec. measuring instrument set type SV steel meas. pin size 2, MR 18-160 mm

Int. prec. measuring instrument set type SV steel meas. pin size 2, MR 18-160 mm
Item no: 1033837 102

Online price:

Available in 8-10 working days.

Application
For precise measuring of bores using the 2-point method. Turning and/or moving the device in the bore makes it possible to detect deviations in shape.

Execution
Dial gauges or precision pointers can be used as display units

Advantage
Modular system for large measuring ranges

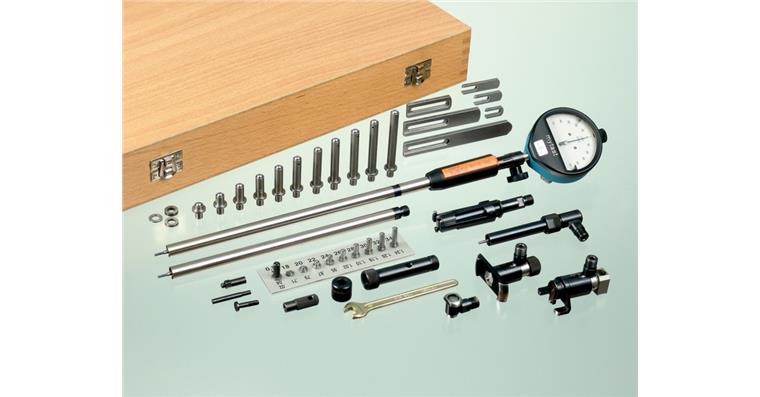

Delivery
1x bore gauge
1x wooden case
Without dial indicator

Notes
Varianten:
Typ SV - Standardausführung
Typ SVS - Sacklochausführung

Brand: SCHWENK
Min./max. diameter of measuring range: 18-160 mm
Number of measurement discs: 5 PCS
Measuring depth: 145 mm
Measurement disc thickness: 0.5 mm | 1 mm | 2 mm | 3 mm
Type: SV
Number of measuring pins: 20 PCS
Nominal dimension of spindle: 18-34 mm, increasing every 2 mm | 50-100 mm, increasing every 5 mm
Number of measurement heads: 2 PCS
Material of measuring bolt: Steel
Number of pieces in assortment/set: 27 PCS
Calibration Group: T

Manufacturer part no.: 12300000

Product Datasheet
