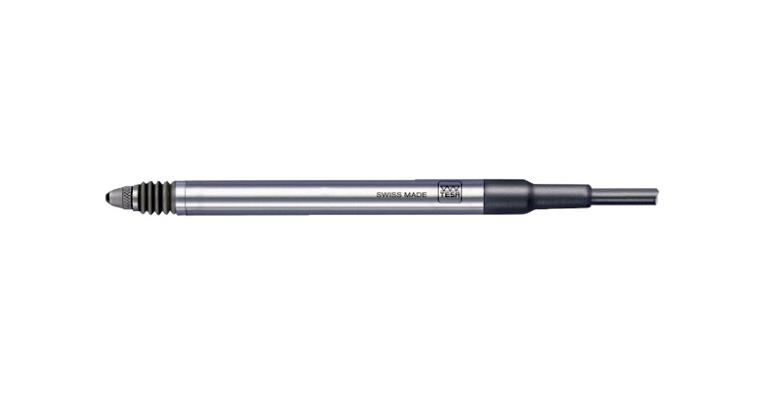

Electronic measuring probe GT 21 measuring range 4 mm measuring force 0.63 N

Electronic measuring probe GT 21 measuring range 4 mm measuring force 0.63 N

Electronic measuring probe GT 21 measuring range 4 mm measuring force 0.63 N
Item no: 1033116 101

Online price:

Available in 6-8 working days.

Application
For a wide variety of standard applications in multi-point measuring technology. Can also be used as an alternative to dial gauges or precision pointers in manual measuring instruments such as internal precision measuring instruments, precision pointer snap gauges etc.

Execution
  • Precise, ball-guided measuring pin
  • Clamping shaft diameter 8 mm, can be clamped along entire length
  • Carbide gauge slide M2.5 with ball diameter 3 mm
  • 5-pin plug in line with DIN 45322, cable length 2 m
  • Mechanical or vacuum lifting of measuring pins, depending on design

Advantage
  • Insensitive to lateral forces and temperature fluctuations
  • Outstanding electromagnetic shielding

Delivery
1x plunger with contact point
Test report with declaration of conformity


Brand: TESA TECHNOLOGY
Model: GT 21
Max. spindle travel: 4,3 mm
Cable output direction: Axial
Material of bellow: Nitrile
Spindle lift: Mechanical
Measuring span of electronic length measuring technology: 4 mm
Measuring range of electronic length measuring technology: +/- 2 mm
Measurement force: 0,63 N
Max. linearity error (L in mm, measured from electric zero point): 0.2 µm + (3 x L³) µm
Repetition standard deviation acc. to DIN 1319: 0,01 µm
Front end position of spindle: -2.2 mm
Ball diameter: 3 mm
Cable length: 2 m
Connection thread: M2.5
Installation length: 61,5 mm
IP protection class: IP 65
Shank diameter: 8 mm

Manufacturer part no.: 03210904

EAN no.: 7630041112351
