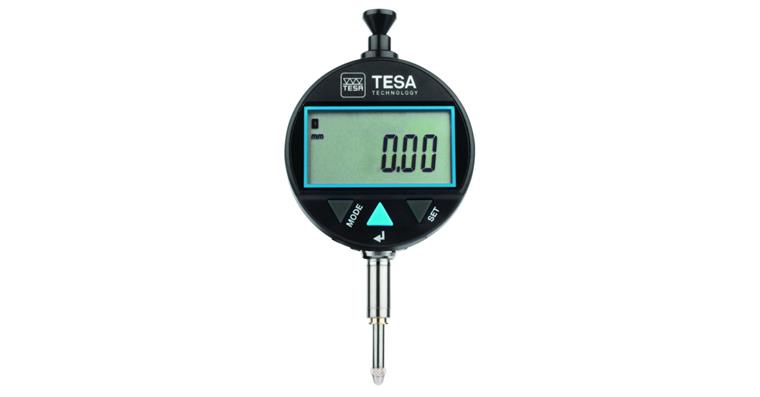

DIALTRONIC EASY dial gauge 12.5 mm, 0.01 mm, dia. 60 mm, IP51

DIALTRONIC EASY dial gauge 12.5 mm, 0.01 mm, dia. 60 mm, IP51

DIALTRONIC EASY dial gauge 12.5 mm, 0.01 mm, dia. 60 mm, IP51
Item no: 1033090 801

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • For static measurements
  • Metal housing
  • Large LCD display
  • Display and function keys can be rotated by 270°
  • Functions: Zero position/PRESET, data transfer, mm/in selection, measurement direction selection, automatic or manual standby mode, measured value locking function

Delivery
1x dial gauge with built-in ball measuring insert dia. 3 mm
1x measurement report
Quick-start instructions


Brand: TESA TECHNOLOGY
Length measuring range: 12,5 mm
Max. length measuring range in inches: 0,5 in
Digit increment: 0,01 mm
Digit increment in inches: 0,0005 in
Error limit: 0,01 mm
Data transmission type: Cable
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,002 mm
IP protection class: IP 51
Dynamic measurement: No
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 01930320

EAN no.: 7630041162578

Product Datasheet
