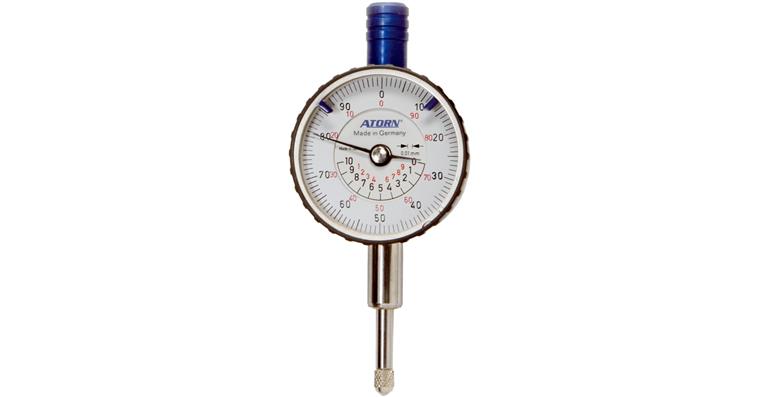

ATORN dial gauge, 25 mm meas. diff., 0.01 mm graduation w/ concentric mm display

ATORN dial gauge, 25 mm meas. diff., 0.01 mm graduation w/ concentric mm display

ATORN dial gauge, 25 mm meas. diff., 0.01 mm graduation w/ concentric mm display
Item no: 1033024 101

Online price:

Available for immediate delivery

Application
For measuring lengths and differences in length, e.g. concentricity, flatness, position measurements.

Execution
  • Measuring pin and clamping shank are made from durable stainless steel
  • Coloured tolerance marks for clear identification of the set tolerance fields
  • Comfortable lifting sleeve with additional dust protection function
  • Concentric mm display for larger, clearer digits

Advantage
Gauge slide with ceramic ball (minimum wear, not electrically conductive)

Delivery
in a case


Brand: ATORN
Length measuring range: 25 mm
Scale value: 0,01 mm
Error limit: 20 µm
Measurement travel of one pointer revolution: 1,0 mm
Outer diameter: 58 mm
Shock protection: Yes
Material of outer ring: Metal
IP protection class: IP 40
Measurement force: 1,0 N
DIN: 878

ATORN-No.: 30390023

EAN no.: 4050293187403

Product Datasheet
