Digital 3-point internal measuring pistol set, Micromar 844 AS MR 6-12 mm

Digital 3-point internal measuring pistol set, Micromar 844 AS MR 6-12 mm

Digital 3-point internal measuring pistol set, Micromar 844 AS MR 6-12 mm
Item no: 1031906 101

Online price:

Available in 6-8 working days.

Application
Measurement of through-bores, blind holes and centring edges.

Execution
  • Connecting thread for changing the measuring heads
  • Self-centring measuring head with three measuring probes on the side, offset by 120°
  • Measuring probes from 12 mm, carbide tipped
  • From 12 mm: measuring probe for measurements down to the base of the hole
  • From 40 mm: weight-saving aluminium measuring head
  • Optimally readable measurement display at all times when using an electronic dial gauge with rotating display
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), mm/inch, Zählrichtungsumkehr, PRESET (Maßvoreinstellung), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), ABS (Anzeige kann auf Null gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), Faktor (einstellbar), LOCK (individuelle Tastensperre)
  • Functions: ON/OFF, RESET (sets the display to zero), mm/inch switching, counting direction reversal, PRESET (measurement presetting), TOL (tolerance input), <0> (tolerance display mode), ABS (display can be set to zero without losing the reference to the preset), DATA (in conjunction with data connection cable), Factor (adjustable), LOCK (individual key lock)

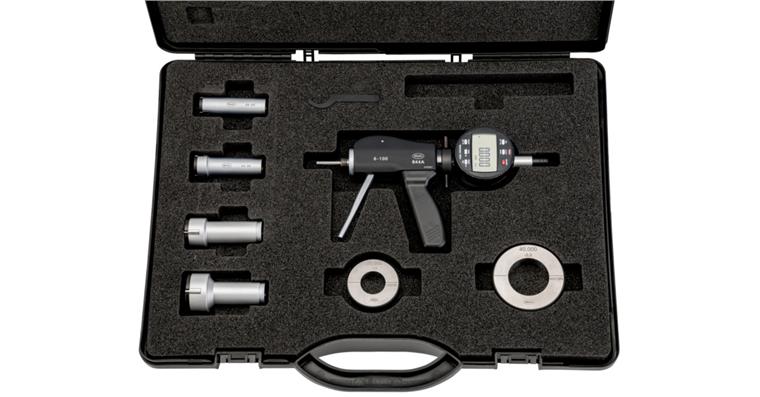

Delivery
1x case
1x basic unit
1x display unit MarCator 1086 R
1x adjustment wrench for changing the measuring heads
1x operating instructions
Measuring heads
Setting rings

Notes
For connection cables, see art. nos. 1035200 404-406.
For replacement batteries, see art. no. 1039900 202.
For display units, see art. no. 1033086.

Brand: MAHR
Min./max. length measuring range: 6-12 mm
Composition of set: 6-8 mm | 8-10 mm | 10-12 mm
Digit increment: 0,0005 mm
Error limit: 0,004 mm
Number of measurement heads: 3 PCS
Number of setting rings: 2 PCS
Interface: Digimatic | Integrated Wireless | Opto RS232 | USB 2.0 type A
Data transmission type: Cable | Wireless
Other standard: Company standard
Calibration Group: I | AC

Manufacturer part no.: 4487760

EAN no.: 4059192021610

Product Datasheet
