Accessory set for digital vernier calipers 19 pieces in case

Accessory set for digital vernier calipers 19 pieces in case

Accessory set for digital vernier calipers 19 pieces in case
Item no: 1031229 101

Online price:

Still in stock: 2

Application
For measuring internal recesses, grooves, bore intervals etc.

Execution
  • Accessory set suitable for all digital callipers with a jaw thickness of up to 3.5 mm
  • Two pairs of probe holders are available in different lengths for mounting different probes (thread M 2.5)
  • Six different pairs of probes are available for a wide range of applications for which standard callipers are unsuitable
  • The accessory set includes a spring system for constant measuring force
  • This simplifies the checking of serial parts
  • The distance between the vertical bores on the underside of the probe holder is 10 mm
  • Parts are always measured with the same contact force


Brand: HHW
Number of pieces in assortment/set: 19 PCS

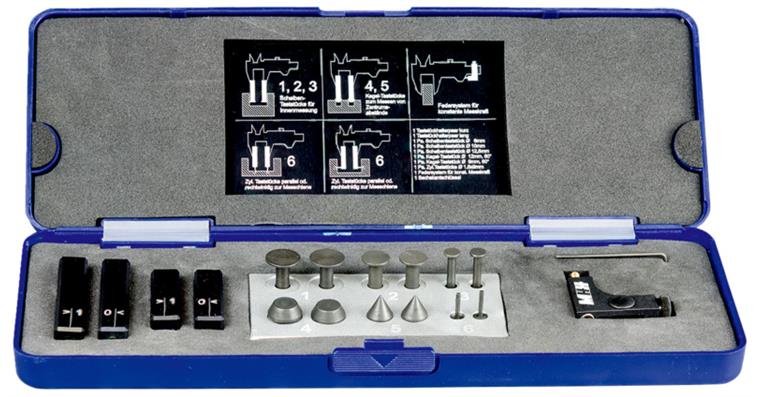

Composition of set: 1 pair of probe holders, short
1 pair of probe holders, long
1 pair of disc probes dia. 6 mm
1 pair of disc probes dia. 10 mm
1 pair of disc probes dia. 12.5 mm
1 pair of taper probes dia. 9 mm, 60°
1 pair of taper probes dia. 12 mm, 60°
1 pair of cylinder probes dia. 1.5x9 mm
1 spring system for constant measuring force
1 hexagon key
1 robust plastic box

EAN no.: 4024496071210
