Application
Ideal for light machining tasks such as milling or drilling - e.g. printed circuit boards or electronic components - or also engraving. It is thus also possible to securely clamp workpieces that are much smaller than the clamping surface of the vacuum plate. Workpieces no larger than a postage stamp can be cut out of larger material sections using milling techniques. Individual adaptation to part geometry ensures reliable clamping of almost all conceivable workpiece geometries.

Execution

• The narrowing of the cross section within the Venturi pipe creates a vacuum, which draws the air in
• Depending on the application, the clamping plate surfaces are equipped with slots. Rubber adapter mats or cover films are required for clamping workpieces that do not cover the entire plate surface
• Noise level of just 57 db (A)
• Vacuum generated by pneumatic vacuum ejector: max. vacuum approx. 5-6 bar. End vacuum of up to 87 % depending on conditions of use. Air consumption approx. 90 l/min

Advantage

• Low overall height
• Rubber adapter mats enable a wide range of applications
• Can be used in HSC (high-speed cutting) applications for milling small contours with the help of plane-parallel rubber adapter mats suitable for milling
• Very small workpieces can be clamped
• Venturi technology requires little maintenance

Delivery

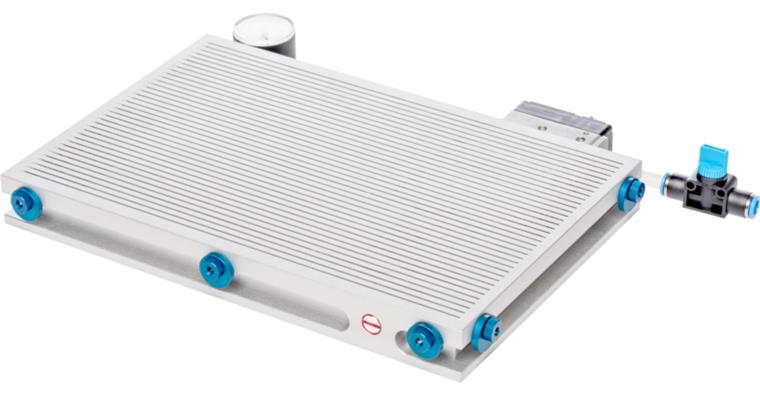

1x vacuum slotted plate, 2x adjustable clamps, 1x hose connection for quick-action coupling, 3 m pneumatic hose, 1x red rubber adapter mat, 1x connection for standard vacuum pump

Notes
Conversion set for wet machining included in scope of delivery. A vacuum pump is also needed for wet machining.
