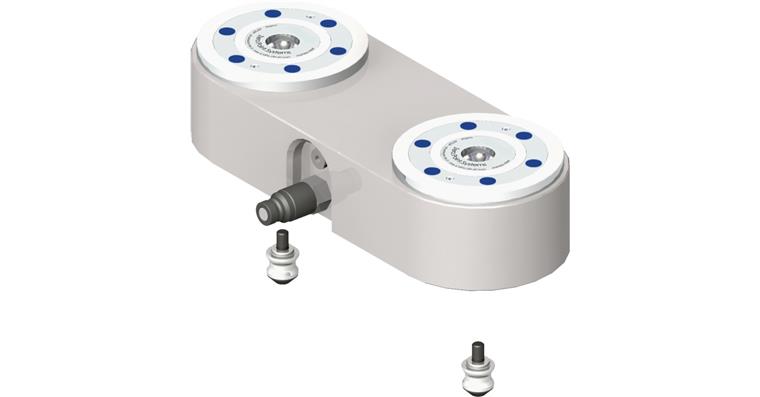

ATORN clamping bracket bore gauge= 200 mm 2-way K10.2

ATORN clamping bracket bore gauge= 200 mm 2-way K10.2

ATORN clamping bracket bore gauge= 200 mm 2-way K10.2
Item no: 1027834 202

Online price:

Available in 6-8 working days.

Application
Hydraulic clamping bracket for clamping with optimised setup time on K10.2 clamping stations. Clamping nipples mounted underneath. The pitch is 115 mm. The quick-action coupling plug is pre-assembled and the integrated blow-out function can be connected individually

Execution
  • Hydraulic unlocking
  • Pneumatic blow-out
  • Unhardened steel

Advantage
Repeat accuracy < 0.005 mm

Delivery
1x clamping bracket


Brand: ATORN

ATORN-No.: 21710244

EAN no.: 4050293642865

Product Datasheet
