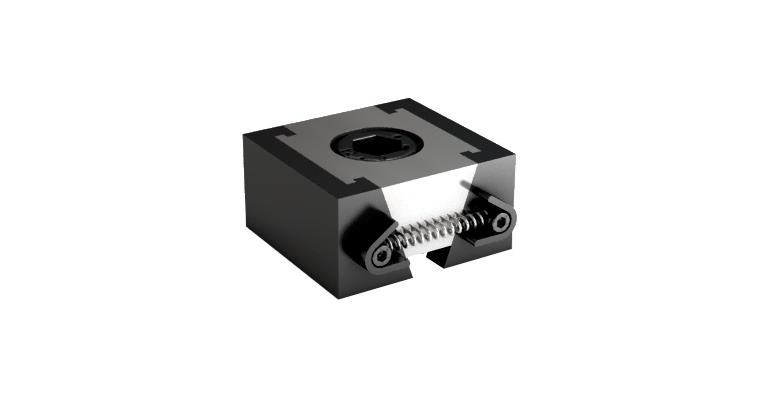

ATORN wedge clamping device, smooth, 42x15 mm, M8, including slot nut

Versions

Item no: 1027753 103

Online price:

Catalogue price: You save:

Available in 8-10 working days.

Min. order quantity: 1

Application
For screwing directly onto multiple clamping rails. Use a clamping screw to clamp two components simultaneously. All modules can be combined with all rails.

Execution
Smooth version

Advantage

The wedge clamping device can be positioned freely on any type of multiple clamping rail
All module sizes fit on all clamping rail widths

Delivery
1x wedge clamping device; incl. sliding block and screw

Brand: ATORN
Taper clamp design: Smooth
Taper clamp width (Keilspannerbreite B): 50 mm
Jaws width (Backenbreite A): 42 mm
Taper clamp height (Keilspannerhöhe C): 15 mm
Max. length: 33 mm
Min. length: 27,5 mm
Height (Höhe h2): 5 mm
Tension force: 1500 kN
Fastening thread: M8

ATORN-No.: 22940030

EAN no.: 4066107022013
