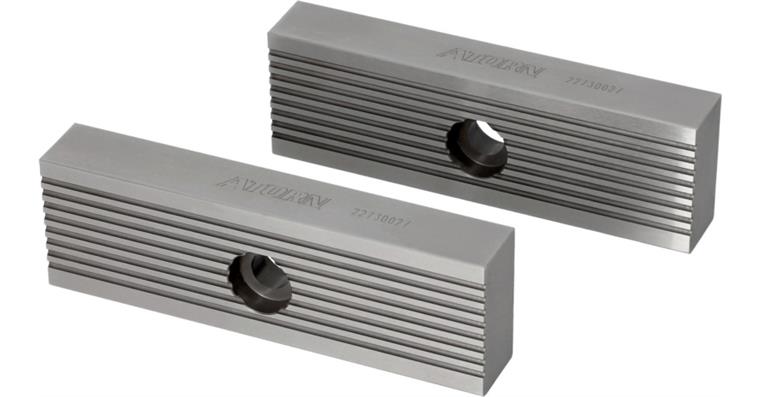

ATORN WB-S reversible jaws 160 mm longit. grooves/smooth suitable for Allmatic

ATORN WB-S reversible jaws 160 mm longit. grooves/smooth suitable for Allmatic

ATORN WB-S reversible jaws 160 mm longit. grooves/smooth suitable for Allmatic
Item no: 1027717 201

Online price:

Still in stock: 3

Application
Reversible jaws for universal use according to requirements. The jaws are screwed directly into the screw-on jaws.

Execution
  • One side with longitudinal grooves and one smooth side
  • Hardened and ground

Advantage
  • Reversible
  • Easy and quick changing

Delivery
1 set of reversible jaws type WB-S including fastening screws

Notes
Suitable for Allmatic NC125; NC160; TC125; TC160; LC126; LC160; NC8 and Garant HiPo Clamp 125 and 160

Brand: ATORN
Type: WB-S reversible jaw
Jaw design: Longitudinal grooves | Smooth
Jaws width: 160 mm
Jaws thickness: 20 mm
Jaws height: 50 mm
Hole distance: 80 mm
Hole distance (vertical): 20 mm

ATORN-No.: 22730028

EAN no.: 4066107040444
