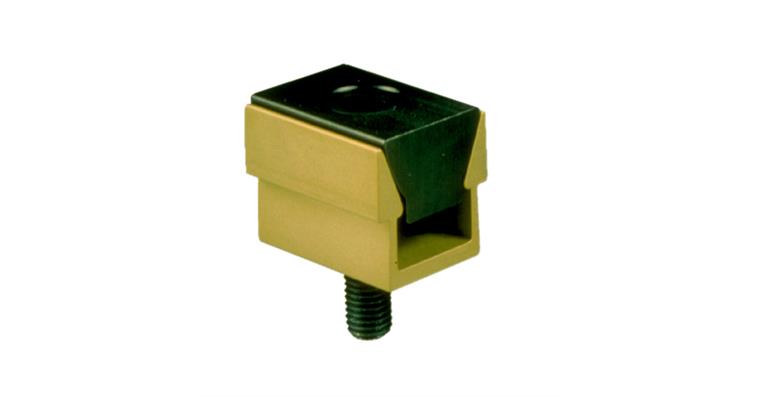

Double wedge clamping device clamping force 9.0 kN pack=4 pcs.

Double wedge clamping device clamping force 9.0 kN pack=4 pcs.

Double wedge clamping device clamping force 9.0 kN pack=4 pcs.
Item no: 1027217 103

Online price:

Still in stock: 7

Application
A simple idea for an ingenious solution: Two workpieces are clamped simultaneously with one clamping element. For round and rectangular parts.

Execution
Consisting of aluminium profile and double wedge made of hardened case-hardening steel

Advantage
  • Space-saving multiple clamping reduces non-productive time and thus unit costs
  • Cost-effective clamping device


Brand: ---
Tension force: 8,9 kN
Tightening torque: 14,5 Nm
Thread dimension (Gewindeabmessung D): M8
Width across flats: 6 mm
Taper clamp width (B): 24,8 mm
Taper clamp height (H): 25,9 mm
Taper clamp length (L): 31,7 mm
Width (B1): 20,8 mm
Width 2 (B2): 25,4 mm
Height (H1): 25,4 mm
Height 2 (H2): 12,7 mm
Length (L1): 31,7 mm

EAN no.: 4046368810000
