LIZZARD ZENTR-SPITZE WS MK5 HM60G VSP

LIZZARD ZENTR-SPITZE WS MK5 HM60G VSP

LIZZARD ZENTR-SPITZE WS MK5 HM60G VSP
Item no: 1024113 204

Online price:

Still in stock: 8

Application
For counter-clamping workpieces on lathes with tailstock mount and grinding machines

Execution
  • Full tip with carbide insert
  • Hardened and polished centring tip
  • Tip angle 60°
  • Concentricity deviation up to 0.005 mm

Advantage
  • High wear resistance due to tool steel and carbide insert
  • High stiffness and load capacity as tips are manufactured from a single piece


Brand: LIZZARD

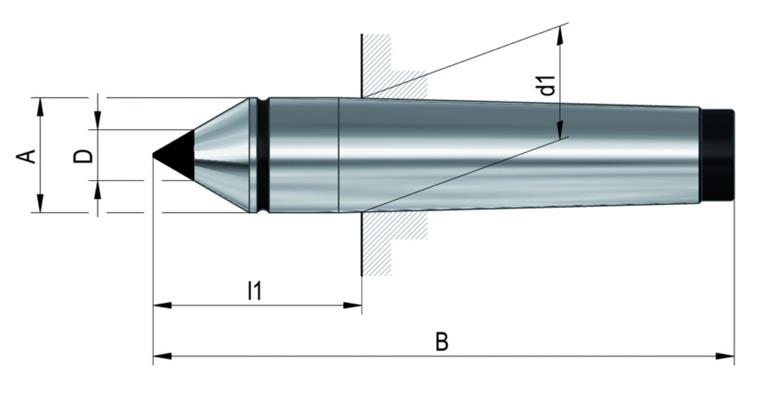

Morse taper size: MK 5
Diameter (Aufnahme-Ø d1): 44,399 mm
Programming size (Programmiermaß l1): 70,5 mm
Outer diameter (Außen-Ø A): 44,7 mm
Concentricity tolerance: 0,005 mm
DIN: 806
Angle of the tip: 60 Degree
Length (Gesamtlänge B): 200 mm
Material: Tool steel

EAN no.: 4024496173198

Product Datasheet
