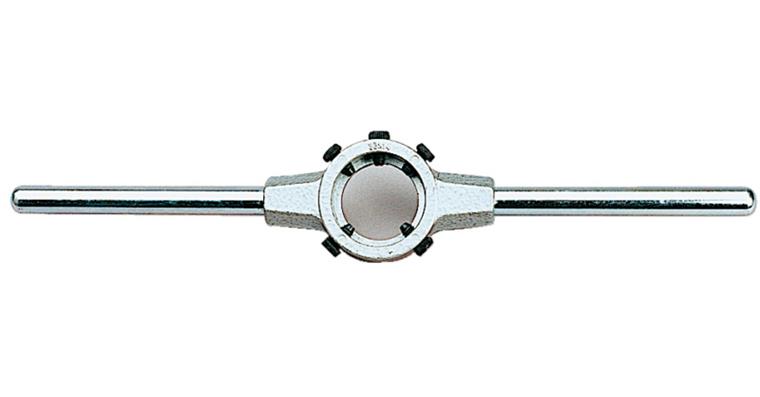

Die holder DIN EN 22568 for die 20x5 mm

Die holder DIN EN 22568 for die 20x5 mm

Die holder DIN EN 22568 for die 20x5 mm
Item no: 1023502 202

Online price:

Available for immediate delivery

Application
For mounting closed and slotted dies according to EN 22568.

Execution
  • Housing up to size 65 x 25 mm made of die-cast zinc, from size 75 x 20 mm made of ST37 steel
  • Welded construction
  • Clamping screws, phosphated
  • Zinc-plated steel handles
  • From size 45 x 14 mm handles can be unscrewed


Brand: LIZZARD
Min./max. thread-cutting area, metric: 3-4 mm
Min./max. thread-cutting area, metric fine: 3-4 mm
Length: 180 mm
Max. thread-cutting area, imperial fine: 4 mm
Max. thread-cutting area, metric: 4 mm
Min. thread-cutting area, metric: 3 mm
Min. thread-cutting area, metric fine: 3 mm
Diameter: 20 mm
Diameter x height: 20 x 5 mm
Height: 5 mm
Max. thread-cutting area, inch: 5/32 in
Min. thread-cutting area, inch: 1/8 in
Min./max. thread-cutting area, imperial: 1/8-5/32 in

EAN no.: 4014176054077

Product Datasheet
