Precision centring device Centricator type C III without shank reading 0.005 mm

Precision centring device Centricator type C III without shank reading 0.005 mm

Precision centring device Centricator type C III without shank reading 0.005 mm
Item no: 1021775 204

Online price:

Available in 8-10 working days.

Application

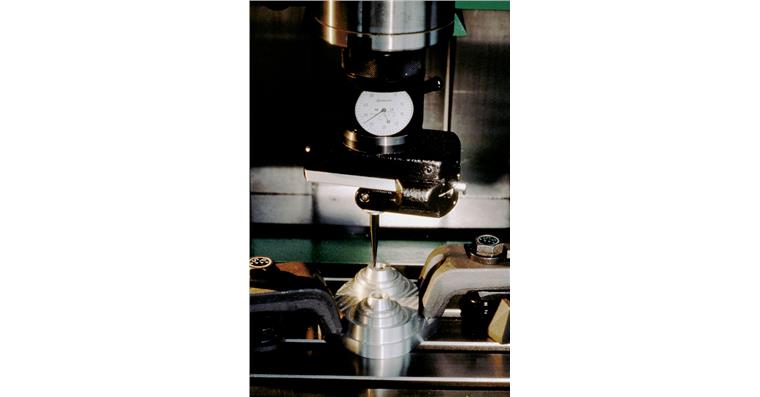

For centring, positioning, aligning, adjusting, checking, probing flat surfaces and edge finding with a working accuracy of 2 µm.

Execution
  • The high-precision mechanics with circumferential probe and stationary dial gauge form the heart of the device.
  • With fixed clamping shank, dia. 16 mm

Delivery
Dial gauge with 0.005 mm reading accuracy, 1 probe insert, ball dia. 5 mm (for bores), 1 hexagon screwdriver AF 3, vial of watch oil no. 5, in a wooden device case

Notes
Deliverable with interchangeable straight shanks on request.

Brand: CENTRICATOR
Scale value: 0,005 mm
Min./max. scanning range for external testing: 0-300 mm
Min./max. scanning range for internal testing: 2-400 mm
Min./max. scanning range for plan testing: 0-480 mm
Max. scanning range for external testing: 300 mm
Max. scanning range for internal testing: 400 mm
Max. scanning range for plan testing: 480 mm
Min. scanning range for external testing: 0 mm
Min. scanning range for internal testing: 2 mm
Min. scanning range for plan testing: 0 mm

Manufacturer part no.: 132918

Product Datasheet
