ATORN Hurco SK40 pull stud A60° without bore

ATORN Hurco SK40 pull stud A60° without bore

ATORN Hurco SK40 pull stud A60° without bore
Item no: 1021741 119

Online price:

Available in 4-6 working days.

Application
For screwing into tool holders. They differ depending on the machine and spindle type and are used to fix the holders in the machine spindle.

Execution
  • All pull studs made from material 16Mn Cr5
  • Case-hardened HRc 58 ± 2
  • Thread and bore hole soft, black oxide and polished
  • Pull studs with O-ring = sealed

Delivery
1x Hurco SK40 pull stud

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 40
Design: With O-ring
Outer diameter (D1): 10 mm
Bolt diameter (D2): 17 mm
Diameter (D): 15 mm
Length (L): 57,15 mm
Coolant supply: No
Angle (α/ A): 60 Degree
Length of tenon (L1): 32 mm

ATORN-No.: 20803273

EAN no.: 4050293569636

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Sweatshirt ladies' red size XS
  •
    ATORN pull stud SK40 OTT ring groove with hole 7 mm
  •
    ATORN pull stud SK50 OTT ring groove with hole 11.5 mm
  •
    Nut for T-grooves DIN 508 M 20x22
  •
    ATORN pull stud ISO 7388-2 SK50 without hole
  •
    ATORN medium non-woven abrasive belt 75x2000 mm
  •

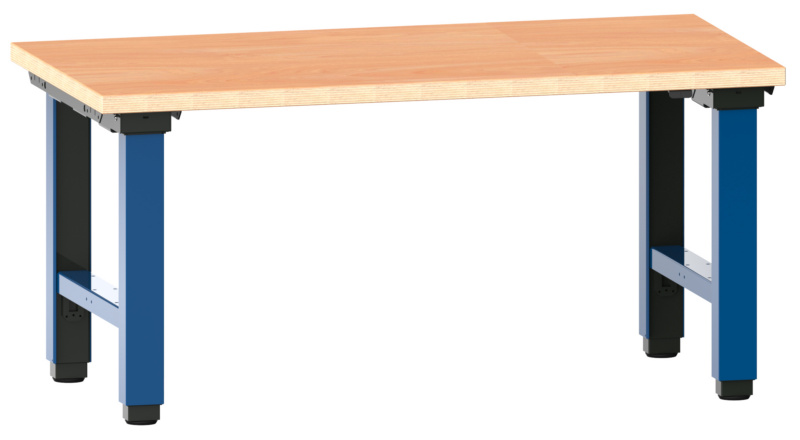

    Arbeitstisch Quattro komplett 2000x800x725-1225 mm
  •
