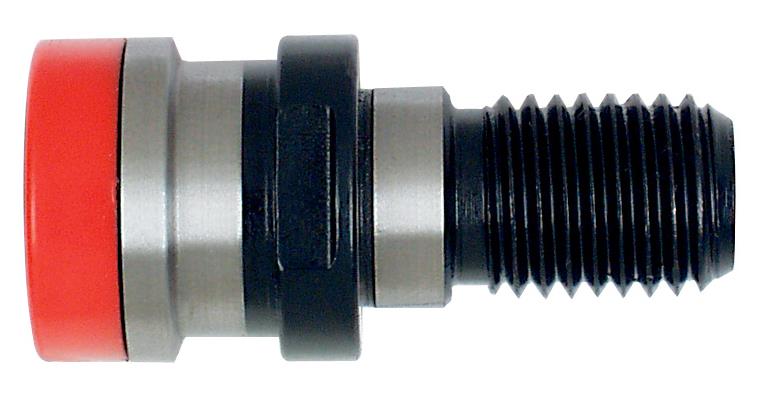

ATORN pull stud OTT SK 50, with female thread M24

ATORN pull stud OTT SK 50, with female thread M24

ATORN pull stud OTT SK 50, with female thread M24
Item no: 1021741 100

Online price:

Available in 4-6 working days.

Application
Matching pull studs for mounting tools and machine tool spindles.

Execution
  • Material 16MnCr5
  • Case-hardened HRc 58 ± 2
  • Pull studs with O-ring (apart from SK 30)

Delivery
1x OTT SK pull stud with female thread

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 50
Outer diameter (D1): 39,6 mm
Suitable for screw thread (d5): M24
Connection thread (D1): Ott ring groove 15° (with thread in head, for shank DIN 69871 AD)
Length (L): 65,1 mm
Coolant supply: Yes
Angle (α/ A): 90 Degree
Length of tenon (L1): 25,1 mm

ATORN-No.: 20803260

EAN no.: 4050293200867

Product Datasheet
