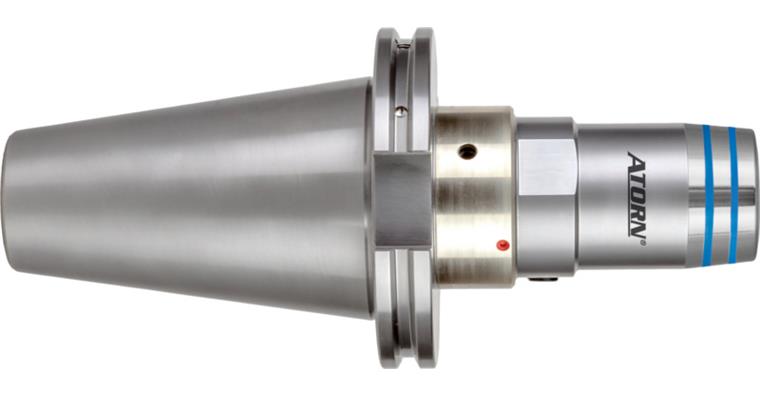

ATORN SK50 hydraulic expansion chuck (ISO 7388-1) dia. 20 mm w/radial adjustment

ATORN SK50 hydraulic expansion chuck (ISO 7388-1) dia. 20 mm w/radial adjustment

ATORN SK50 hydraulic expansion chuck (ISO 7388-1) dia. 20 mm w/radial adjustment
Item no: 1021711 100

Online price:

Available in 5-7 working days.

Application
Simple, radially adjustable tool holder, ensures the precise friction required. Concentricity and alignment errors can be compensated without vibration, high cutting and service life is consequently ensured. The integrated coolant supply ensures an optimal supply of cooling lubricant to the reamer's cutting edges.

Execution
  • Simple and precise adjustment via adjusting screw
  • The thread and the wedge angle on the adjustment wedge create a self-locking effect, so there is no setting behaviour
  • Radial and axial coolant transfer = AD/AF
  • Radially adjustable to 0.010 mm
  • Excellent damping properties to increase the service life of tools and machine spindles
  • With 10 mm axial length adjustment
  • Pull studs no. 23690 required

Advantage
  • Concentricity easily adjustable to 0 μm
  • Reducing sleeves for maximum flexibility
  • Optimum precision and surface quality
  • Longer cutting tool service life
  • High-precision centric clamping

Delivery
1x SK50 hydraulic expansion chuck (ISO 7388-1) with radial adjustment

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 50
Clamping diameter (d): 20 mm
Projecting length (A): 110 mm
Form: AD/AF
Outer diameter (D): 46 mm
Tapered diameter (d2): 38 mm
Diameter (d3): 42 mm
Clear length (l3): 50 mm
Clearance length to collar (l1): 50 mm
Clamp in depth (l2): 51 mm
Clamping length (L4): 51 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Suitable for thread (G): M8 x 1
Width across flats: 3 mm
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044656

EAN no.: 4050293439885
