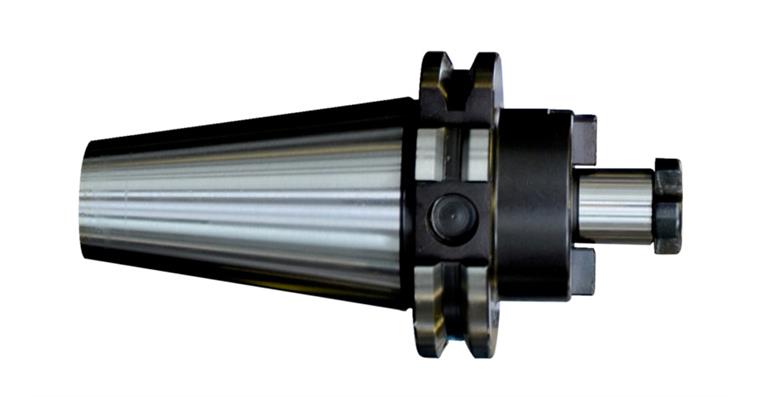

Face mill arbor with CCB DIN 69871 AD/B SK40 16 mm

Face mill arbor with CCB DIN 69871 AD/B SK40 16 mm

Face mill arbor with CCB DIN 69871 AD/B SK40 16 mm
Item no: 1021675 101

Online price:

Available in 6-8 working days.

Execution
  • Taper shank, mounting spigot and contact surface ground on the collar
  • Hard-turned shank
  • With Balluff chip hole
  • With 2 cooling channel bores

Delivery
With cutter retaining screw.


Brand: ---
Tool holding device: SK 40
Mandrel diameter (d1): 16,0 mm
Tap length (L1): 17,0 mm
Outer diameter (D): 38,0 mm
Projecting length (A): 35,0 mm
Surface: Uncoated
Balancing quality: G 2.5 at 25,000 rpm
DIN: 69871-1
Construction length: Short
Standard shank design: DIN 69871-1 AD/B
Thread dimension: M8
Tightening thread: M16

EAN no.: 4024496064090

Product Datasheet
