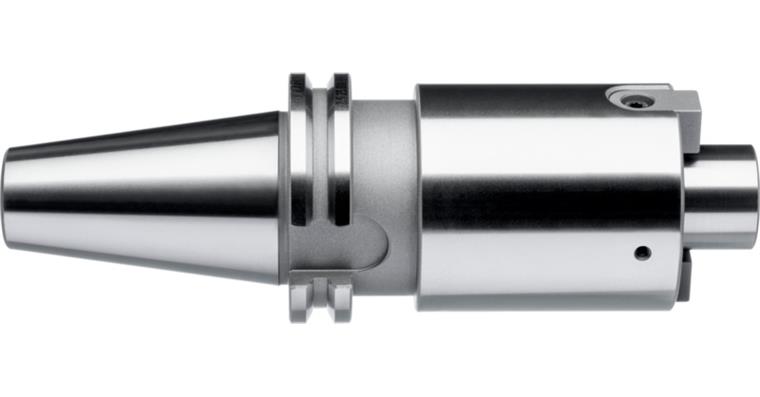

ATORN transverse drive shell end mill arbour SK40 (ISO 7388-1) dia. 22mm A=35mm

ATORN transverse drive shell end mill arbour SK40 (ISO 7388-1) dia. 22mm A=35mm

ATORN transverse drive shell end mill arbour SK40 (ISO 7388-1) dia. 22mm A=35mm
Item no: 1021671 504

Online price:

Availability on demand

Application
For accommodating shell end mills and angular milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x SK40 or SK50 transverse drive shell end mill arbour (ISO 7388-1); with retaining screw

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Form: AD
Mandrel diameter (d): 22 mm
Tap length (L): 19 mm
Projecting length (A): 35 mm
Outer diameter (D): 48 mm
Balancing quality: G 2.5 at 25,000 rpm
Coolant supply: Internal axial

ATORN-No.: 22660793

EAN no.: 4050293712087

Product Datasheet
