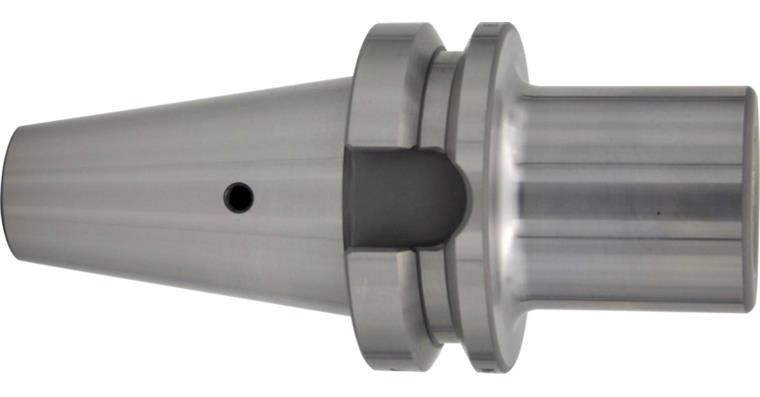

ATORN spacer sleeve BT40 (ISO 7388-2) MK2 + clamping thread A=50 mm

ATORN spacer sleeve BT40 (ISO 7388-2) MK2 + clamping thread A=50 mm

ATORN spacer sleeve BT40 (ISO 7388-2) MK2 + clamping thread A=50 mm
Item no: 1021653 201

Online price:

Available in 8-10 working days.

Application
For holding tools with Morse taper shank in accordance with DIN 228 A with clamping thread.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x BT40 spacer sleeve (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Projecting length (A): 50 mm
Outer diameter (D): 32 mm
Tool holding device: BT 40
Morse taper size: MK 2

ATORN-No.: 22660906

EAN no.: 4050293713213

Product Datasheet
