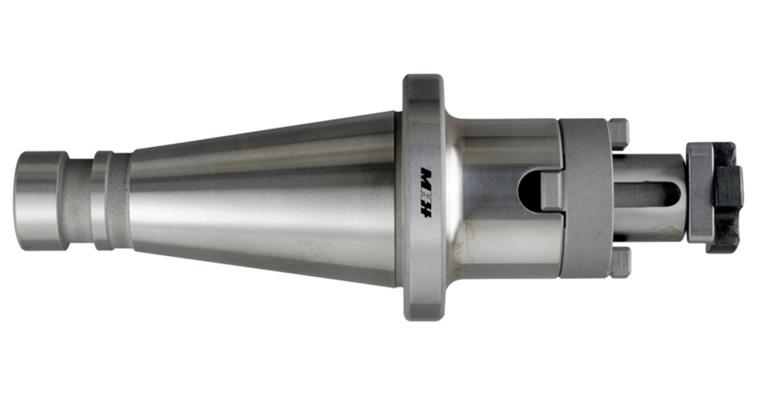

Combination mill arbor DIN 2080A SK 40x40 with internal locking thread

Combination mill arbor DIN 2080A SK 40x40 with internal locking thread

Combination mill arbor DIN 2080A SK 40x40 with internal locking thread
Item no: 1021649 311

Online price:

Available in 8-10 working days.

Application
With key for cutters with longitudinal grooves such as DIN 841, and driver ring for cutters with lateral grooves DIN 1880 and blade heads DIN 1830.

Execution
  • Steep taper with inner clamping thread
  • Alloyed case-hardening steel. min. tensile strength 950 N/mm²
  • Taper angle tolerance more accurate than AT 3
  • Mounted with cutter retaining screw in accordance with DIN 6367
  • Hardened and ground functional surfaces

Delivery
Including key, driver ring and retaining screw.


Brand: LIZZARD
Standard shank design: DIN 2080
Tool holding device: SK 40
Mandrel diameter (d): 40,0 mm
Tap length (l): 27,0 mm
Projecting length (A): 51,6 mm
DIN: 2080
Outer diameter (D): 70,0 mm
Balancing quality: G 6,3 at 7000 rpm
Construction length: Short
Coolant supply: External
Max. concentricity: 0,005 mm
Tightening thread: M16

EAN no.: 4024496062553
