Shrink-fit chuck DIN 69871 shape AD SK40 long diameter 16 x 120 mm

Shrink-fit chuck DIN 69871 shape AD SK40 long diameter 16 x 120 mm

Shrink-fit chuck DIN 69871 shape AD SK40 long diameter 16 x 120 mm
Item no: 1021596 555

Online price:

Available in 6-8 working days.

Application
For clamping of cemented carbide, HSS and steel shafts with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Delivery
- Incl. length-adjusting screw

Notes
For extensions, see art. no. 1021598.
For pull studs, see art. no. 1021733-1021740.
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: SK 40
Clamping diameter (d1): 16,0 mm
Projecting length (A): 120,0 mm
Tapered diameter (d2): 27,0 mm
Outer diameter (d3): 34,0 mm
Clamp in depth (l1): 50,0 mm
Length (l2): 50,0 mm
Form: AD
Concentricity tolerance: 0,003 mm
Max. adjustment travel (max. V): 10,0 mm
Coolant supply: Internal
Balancing quality: G 6.3 at 18,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 AD
Thread dimension (g): M12
Tightening thread: M16

Manufacturer part no.: 72.060.500.550

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Feeler gauge tape assortment in wall holder 0.01-0.25 mm dimensions 330x100x110
  •
    ATORN NC reamer SC T=6 B 7-8° 6.98mm 0-0.003mmx109mmx31mm HA sim. to DIN 8093
  •
    Drawer fixture, centre rails + dividers, series 50/555 mod. 507 H 50 mm
  •
    Surface paste blue for surface inspection can 225 g
  •
    Funktionshose X-Stretch karbongrau Gr. 3XL
  •

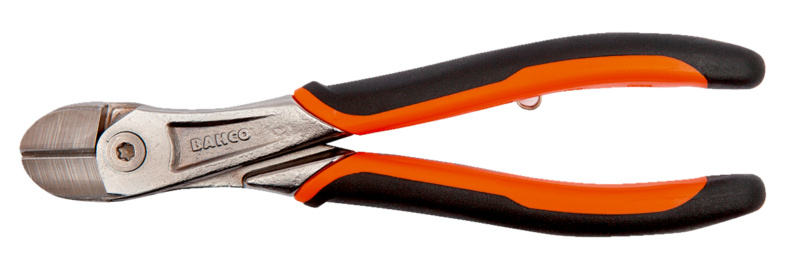

    Seitenschneider Länge 200 mm mit Hochleistungs-Schneiden CV-Stahl
  •
