Shrink-fit chuck DIN 69871 shape AD SK40 diameter 16 x 80 mm

Shrink-fit chuck DIN 69871 shape AD SK40 diameter 16 x 80 mm

Shrink-fit chuck DIN 69871 shape AD SK40 diameter 16 x 80 mm
Item no: 1021596 506

Online price:

Available in 6-8 working days.

Application
For clamping of cemented carbide, HSS and steel shafts with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Delivery
- Incl. length-adjusting screw

Notes
For extensions, see art. no. 1021598.
For pull studs, see art. no. 1021733-1021740.
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: SK 40
Clamping diameter (d1): 16,0 mm
Projecting length (A): 80,0 mm
Tapered diameter (d2): 27,0 mm
Outer diameter (d3): 34,0 mm
Clamp in depth (l1): 50,0 mm
Length (l2): 50,0 mm
Form: AD
Concentricity tolerance: 0,003 mm
Max. adjustment travel (max. V): 10,0 mm
Coolant supply: Internal
Balancing quality: G 6.3 at 18,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 AD
Thread dimension (g): M12 x 1
Tightening thread: M16

Manufacturer part no.: 72.060.500.500

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Carbide cut. ins. MINI-CUT right RS011.0100 recess turning general HC8620/TiAlN
  •
    ATORN collet chuck with planar contact face SK40 (ISO 7388-1) ER16 A=70 mm
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 diameter 12 x 80 mm
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 diameter 14 x 80 mm
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 diameter 18 x 80 mm
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 diameter 25 x 100 mm
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 diameter 32 x 100 mm
  •
    Shrink-fit chuck DIN 69893 shape A HSK63 diameter 10 x 90 mm
  •
    Shrink-fit chuck DIN 69893 shape A HSK63 diameter 12 x 90 mm
  •
    Shrink-fit chuck DIN 69893 shape A HSK63 diameter 16 x 95 mm
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 diameter 10 x 65 mm
  •

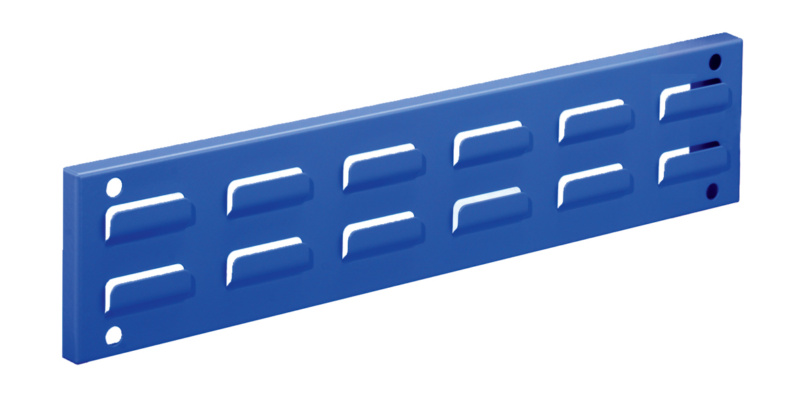

    Wall rail for slotted plate LxH = 460x100 mm RAL 5012
