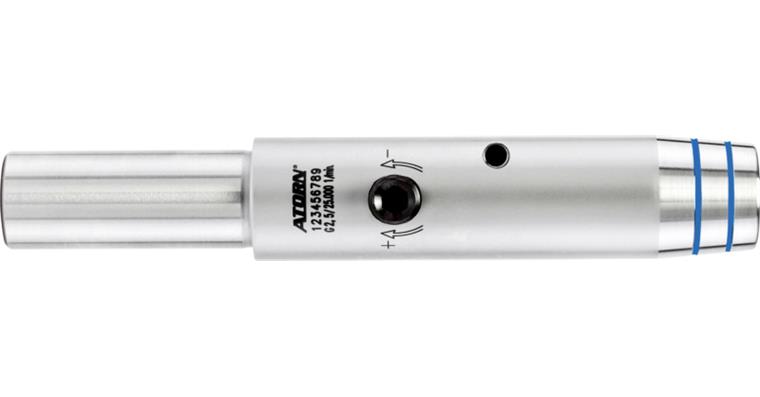

ATORN hydraulic expanding extension dia. 20x200 mm shank dia. 32 mm with IC

Versions

Item no: 1021579 104

Online price:

Catalogue price: You save:

Available in 5-7 working days.

Min. order quantity: 1

Application
Highly flexible extension for HYDRO expansion and collet. For high precision centric clamping of milling, drilling and reaming tools.

Execution

Rapid tool replacement and axial length adjustment
All standard shank diameters (h6) can be clamped
Central coolant supply (ICS) up to 80 bar

Advantage

Outstanding damping properties
Spacer sleeves provide a wide clamping range
High torque transfer (dia. 12 = 80 Nm/dia. 20 = 330 Nm)
Very good accessibility thanks to minimal interference contour
Spacer sleeves for flexible application

Brand: ATORN
Clamping diameter (d): 20 mm
Shank diameter (d1): 32 mm
Outer diameter (D): 31,5 mm
Length (L): 200 mm
Projecting length (A): 90 mm
Clamp in depth (l2): 51 mm
Suitable for thread (G): M16 x 1
Width across flats: 5 mm
Max. adjustment travel (max. V): 10 mm
Concentricity tolerance: 0,006 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21040303

EAN no.: 4050293359244
