Sealed prec. collet chuck dia. 6mm w/spray nozzle GERC25-HPDD/429E DxL=26x34mm

Sealed prec. collet chuck dia. 6mm w/spray nozzle GERC25-HPDD/429E DxL=26x34mm

Sealed prec. collet chuck dia. 6mm w/spray nozzle GERC25-HPDD/429E DxL=26x34mm
Item no: 1021567 102

Online price:

Available in 6-8 working days.

Execution
  • HPDD with seal for inner coolant supply (can be used up to 120 bar) and spray nozzle
  • With small concentricity and repetition 2 µm (for system tolerance 3 µm and with 3 x D maximum = 50 mm), clamp bridge h10
  • For ATORN precision collet chucks and Fahrion CentroP precision collet chucks
  • With FAHRION|Protect corrosion protection for longer service life
  • Surface super-finished for enhanced retention force
  • Only the nominal dimension can be clamped (straight shank with h8)

Advantage
  • Greater concentricity extends tool service life
  • Collet chucks do not need to be replaced as often or can be used for longer for specific applications


Brand: FAHRION
Collet type: 429E GERC25-HPDD
Clamping diameter (d): 6,0 mm
Outer diameter (D): 25,7 mm
Length (L): 34,0 mm
Coolant supply: Inner cooling and spray nozzles
Clamping bypass: 0,0 mm
ISO: 15488
Max. concentricity: 0,003 mm

Manufacturer part no.: 22635

EAN no.: 4054631171086

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

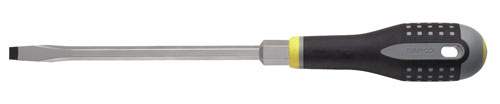

  • Workshop slotted screwdriver 3-component handle, hex shoulder 1.6x8.0x175 mm
  •
