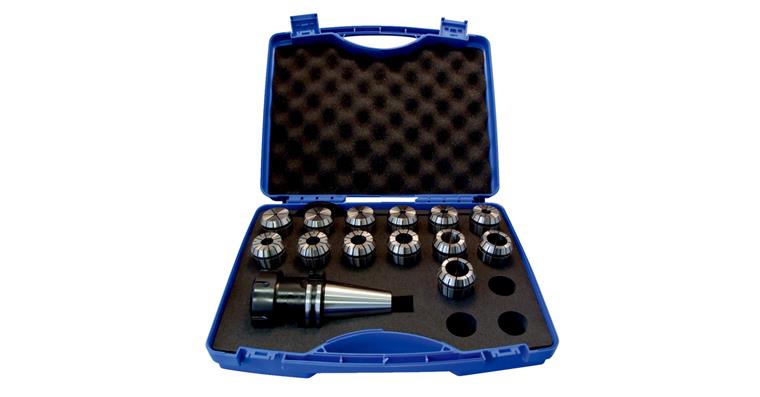

ER collet chuck set SK40 ISO 7388-1 DIN 69871 15 pieces

ER collet chuck set SK40 ISO 7388-1 DIN 69871 15 pieces

ER collet chuck set SK40 ISO 7388-1 DIN 69871 15 pieces
Item no: 1021506 102

Online price:

Will be ordered for you

Application
For tools with a straight shank.

Execution
  • Concentricity deviation between the taper and internal taper = 0.003 mm
  • Union nut, standard design
  • Collet chucks with double taper, slotted on both sides and extraction groove for easy release and replacement of the jaws
  • Taper angle tolerance according to AT 3
  • Case-hardening steel, functional surfaces hardened and ground

Advantage
  • 1 mandrin à pinces, type ER 40, plage de serrage 3-26 mm
  • 13 mandrins à pinces, type 472 E, fendus des deux côtés, diamètre 4/5/6/8/10/12/14/16/18/20/22/24/25 mm
  • 1 clé de serrage
  • 1 boîte en plastique

Delivery
Pour outils à queue cylindrique.


Brand: HHW
Construction length: Short
DIN: 69871-1
Included in delivery: 1 Spannzangenfutter, Typ ER 40, Spannbereich 3-26 mm
13 Spannzangen, Typ 472 E, beidseitig geschlitzt, Ø 4 / 5 / 6 / 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 / 25 mm
1 Spannschlüssel
1 Kunststoffkasten
ISO: 7388
Number of pieces in assortment/set: 15
Tightening thread: M16
Tool holding device type: ER-Collet chuck

EAN no.: 4024496056194

Product Datasheet
