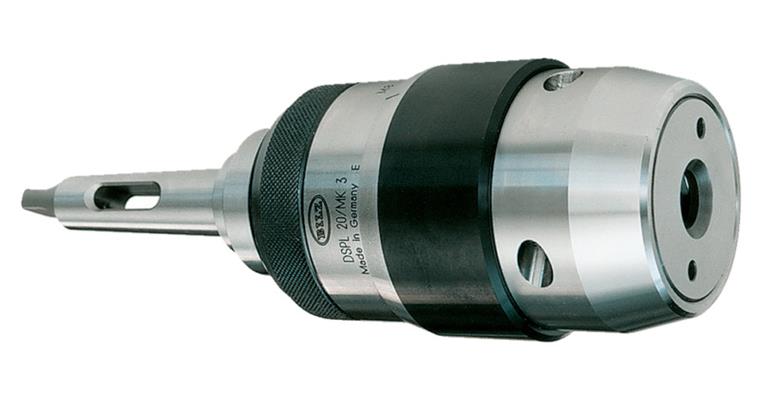

Tapping chuck type DSPL 20 MT4 for M8-M20

Tapping chuck type DSPL 20 MT4 for M8-M20

Tapping chuck type DSPL 20 MT4 for M8-M20
Item no: 1021406 104

Online price:

Available in 6-8 working days.

Application
For cutting female threads on reversible drills, lathes and milling machines. Can be used horizontally and vertically.

Execution
Morse taper shank and flat tangs in accordance with DIN 228 B. Double chuck (clamps shank and square). Safety slip coupling prevents tool breakage, pendulum device compensates misalignment between the machine and the workpiece. Elastic length compensation under compression and tension

Delivery
Includes spanner.

Notes
For left-hand threads deliverable on request.

Brand: BILZ
Suitable for thread: M8-M20
Min. clamping range diameter: 6,0 mm
Max. clamping range diameter: 16,0 mm
Morse taper size: MK 4
Projecting length (A): 171,0 mm
Compensation parallel to axis: 1,5 mm
Diameter: 83,0 mm
DIN: 228
Pressure length compensation: 10,0 mm
Tension length compensation: 20,0 mm

Manufacturer part no.: DSPL20/MK4
