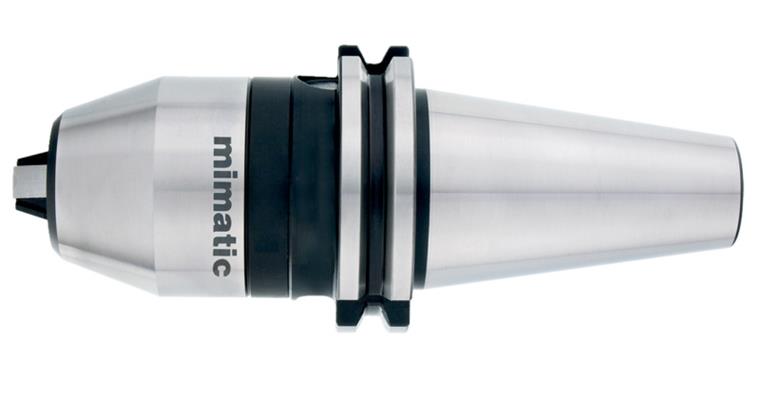

Precision short drill chuck Mimatic DIN 69871 AD SK50 0.5-13 mm

Precision short drill chuck Mimatic DIN 69871 AD SK50 0.5-13 mm

Precision short drill chuck Mimatic DIN 69871 AD SK50 0.5-13 mm
Item no: 1021215 205

Online price:

Available in 5-7 working days.

Execution
With central coolant supply through the machine spindle or via 2 holes on the exchangeable flange (DIN 69871/AD, DIN 69871/B). Concentricity accuracy below 0.03 mm. Max. permissible rotation speed 10,000 rpm. Higher holding torque of 70-80 Nm

Notes
For pull studs, see art. no. 1021733-21740.

Brand: MIMATIC
Tool holding device: SK 50
Min./max. clamping width: 0.5-13.0 mm
Projecting length (A): 110,0 mm
Outer diameter (D2): 48,5 mm
Form: AD
Concentricity tolerance: 0,030 mm
Coolant supply: Internal
Balancing quality: G 6.3 at 12,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 AD
Tightening thread: M24

Manufacturer part no.: 131987

Product Datasheet
