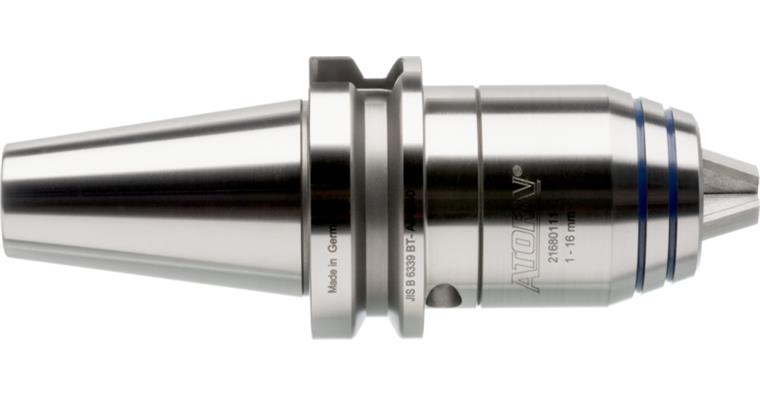

ATORN short drill chuck 1 - 16 mm BT 40

ATORN short drill chuck 1 - 16 mm BT 40

ATORN short drill chuck 1 - 16 mm BT 40
Item no: 1021192 101

Online price:

Available in 6-8 working days.

Application
For use on machining centres and CNC milling machines with tool change. For drilling, reaming, countersinking and also light milling and smoothing tasks.

Execution
  • Integrated worm gear ensures high retaining torque
  • Remains securely clamped even if the spindle stops suddenly

Advantage
Wear parts hardened and polished for a long service life

Delivery
1x BT40 NC or short drill chuck (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was replaced by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Min./max. clamping width (Spannweite min./max. C): 1-16 mm
Projecting length (A): 88 mm
Outer diameter (D): 50 mm
Concentricity tolerance: 0,03 mm
Coolant supply: Internal axial
Balancing quality: G 40 at 7,000 rpm

ATORN-No.: 21680002

EAN no.: 4050293153774

Product Datasheet
