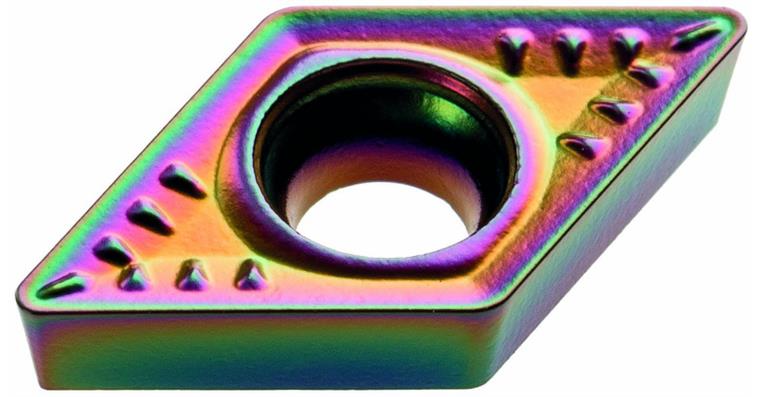

Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T
ISO-Code Rotating: DCMT 11T308
Material to be processed: Steel | Cast metal
min./max. ap: 0.25-3.5 mm
f min./max.: 0.12-0.4 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,4 mm/r
max. ap: 3,5 mm
min. ap: 0,25 mm
Supply type: Medium finishing
Chip breaker code: MP5
Min./max. Vc in steel: 220-400 m/min
Min./max. Vc in cast iron: 140-370 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370807

EAN no.: 4050293729627
