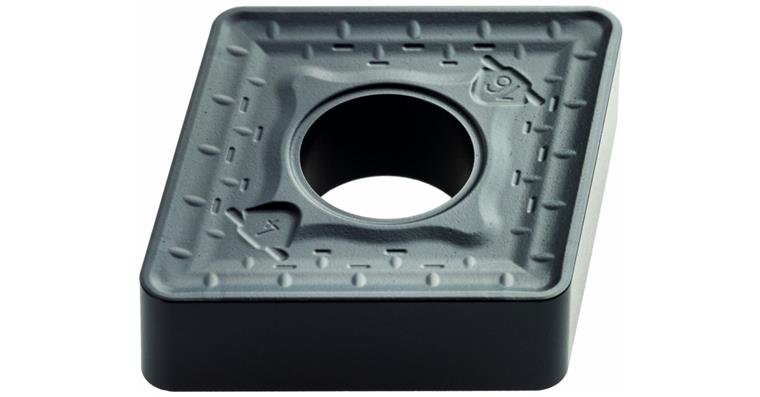

ATORN carbide indexable insert CNMM 250924-RP9 ACP25T

ATORN carbide indexable insert CNMM 250924-RP9 ACP25T

ATORN carbide indexable insert CNMM 250924-RP9 ACP25T
Item no: 1019404 120

Online price:

Available in 6-8 working days.

Notes
Carbide indexable insert CNMM 190616-RP9 ACP25T

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 25
Thickness of indexable insert ISO: 09
Corner radius of indexable insert ISO: 24
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: CNMM 250924
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 2.0-13.0 mm
f min./max.: 0.5-1.5 mm/U
Materials group: K (secondary application) | P (primary application) | M (secondary application)
f min.: 0,5 mm/r
max. f: 1,5 mm/r
max. ap: 13,0 mm
min. ap: 2,0 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP9
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-210 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370680

EAN no.: 4050293728354
