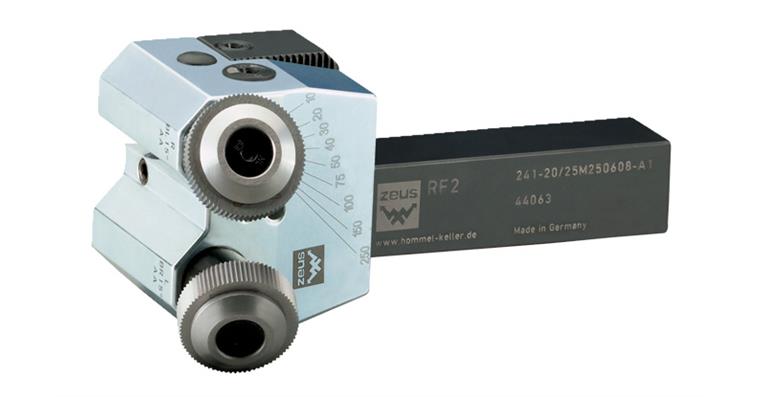

Knurling tool, sample RGE 30/45° 10-250 mm without knurling wheels

Knurling tool, sample RGE 30/45° 10-250 mm without knurling wheels

Knurling tool, sample RGE 30/45° 10-250 mm without knurling wheels
Item no: 1018978 101

Online price:

Still in stock: 1

Application
For conventional and CNC lathes, turning/milling centres, multi-spindle machines and short/universal lathes.
Knurling patterns: RGE 30°, RGE 45°.
Knurl cutter:
2x shape AA (RGE 30°)
1x shape BL 15°
1x shape BR 15° (RGE 45°)

Execution
  • Modular design: Knurling tool can be used universally as right and left-hand version
  • Changeover by simple rotation of the knurling head
  • Versatile: Vertical height adjustment for use on shank sizes 20 and 25 mm
  • Simple setting: Setting scale and setting spindle for fast setting of the production diameter
  • Fine adjustment of the tip height by adjusting the height of the milling head spindle
  • Special surface hardening for increased wear resistance

Delivery
Delivered without knurl cutter (see art. no. 1018981-1018983).


Brand: ZEUS
For min./max. workpiece diameter (Für Werkstück-Ø min./max.): 10-250 mm
Shaft height (Schafthöhe a): 20 mm
Shank width (Schaftbreite b): 20 mm
Shaft length (Länge c): 134 mm
Width (Breite d): 68 mm
Length 2 (Länge e): 54 mm
Height (Höhe f): 58 mm
Suitable for knurling size: 25 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RGE
Tool design: Left | Right

Manufacturer part no.: RW241-20M250608-A1

EAN no.: 4030741257469

Product Datasheet
