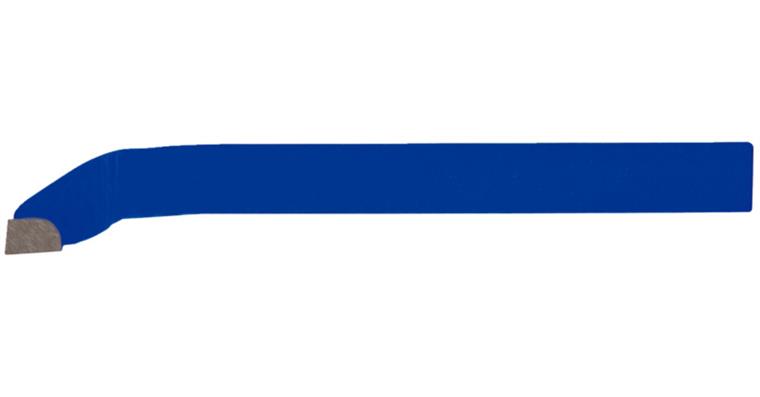

Carbide offset corner lathe chisel DIN 4978/ISO 3 right set. angle 95° K20 20 H

Carbide offset corner lathe chisel DIN 4978/ISO 3 right set. angle 95° K20 20 H

Carbide offset corner lathe chisel DIN 4978/ISO 3 right set. angle 95° K20 20 H
Item no: 1018869 240

Online price:

Available in 8-10 working days.

Execution
  • Carbide lathe chisel DIN 4978
  • Right
  • Approach angle 95°
  • With soldered ISO cutting edges in accordance with DIN 4950
  • Cutting edges carbide-tipped.


Brand: LIZZARD
Shank width: 12 mm
Shaft height: 20 mm
Length: 125 mm
Carbide type: K 10/20
Cutting direction: Right-hand cutting
Cutting material: Carbide
DIN: 4978
Shank type: Rectangular
Suitable for material group H: 0 - not applicable
Suitable for material group K: 1
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 2

EAN no.: 4030456148793

Product Datasheet
