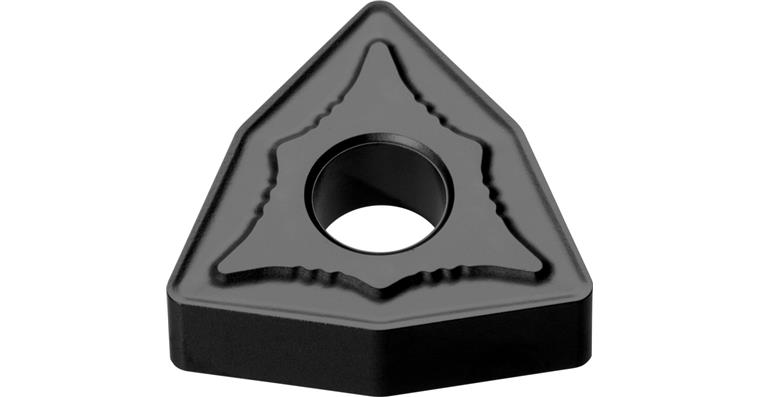

ATORN indexable insert WNMG 80408 roughing RM HC7820

ATORN indexable insert WNMG 80408 roughing RM HC7820

ATORN indexable insert WNMG 80408 roughing RM HC7820
Item no: 1018621 330

Online price:

Available for immediate delivery

Advantage
  • Perfect combination of toughness and resistance to wear, for a high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: WNMG 080408
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 1.2-4 mm
f min./max.: 0.2-0.4 mm/U
Materials group: M (primary application) | P (primary application) | S (primary application)
f min.: 0,2 mm/r
max. f: 0,4 mm/r
max. ap: 4 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 80-220 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875266

EAN no.: 4066107006693
