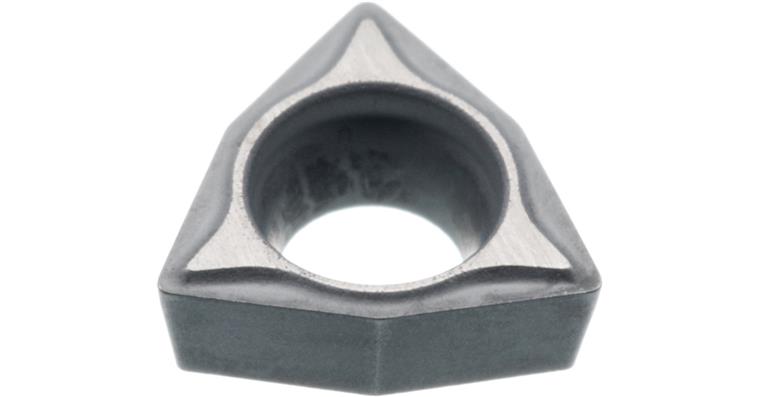

ATORN indexable inserts WCMT 020104-MN HC7625

ATORN indexable inserts WCMT 020104-MN HC7625

ATORN indexable inserts WCMT 020104-MN HC7625
Item no: 1018619 202

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and facing with a wide infeed range in moderate cutting conditions

Execution
ground cemented carbide indexable insert

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 02
Thickness of indexable insert ISO: 01
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: HC7625
ISO-Code Rotating: WCMT 020104
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 0.1-0.8 mm
f min./max.: 0.05-0.10 mm/U
Materials group: P (primary application) | K (primary application) | M (primary application)
f min.: 0,05 mm/r
max. f: 0,10 mm/r
max. ap: 0,8 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in steel: 110-220 m/min
Min./max. Vc in cast iron: 120-190 m/min
Min./max. Vc in stainless steel: 60-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 11111413

EAN no.: 4050293544138

Product Datasheet
