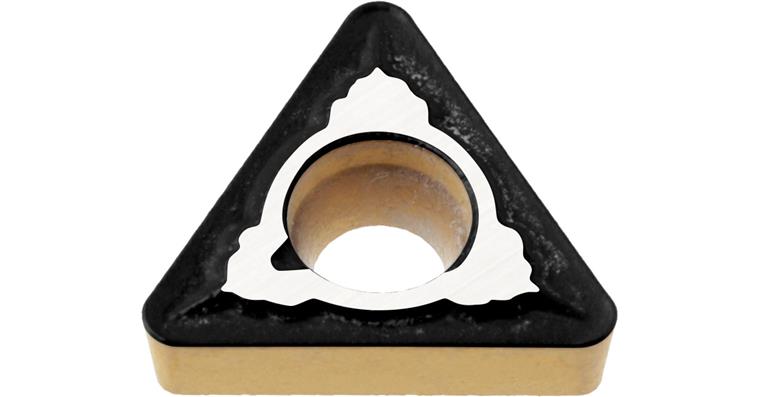

ATORN indexable insert TCMT 16T304-MP1 ACP25T-1

ATORN indexable insert TCMT 16T304-MP1 ACP25T-1

ATORN indexable insert TCMT 16T304-MP1 ACP25T-1
Item no: 1018581 419

Online price:

Available in 6-8 working days.

Advantage
  • perfect combination of toughness and wear resistance, for high degree of process stability and broad range of applications
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: TCMT 16T304
Material to be processed: Steel | Cast iron
min./max. ap: 0.25-3 mm
f min./max.: 0.08-0.25 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,08 mm/r
max. f: 0,25 mm/r
max. ap: 3 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 135-370 m/min

ATORN-No.: 12350930

EAN no.: 4066107045463

Product Datasheet Datasheet cutting values
