Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1

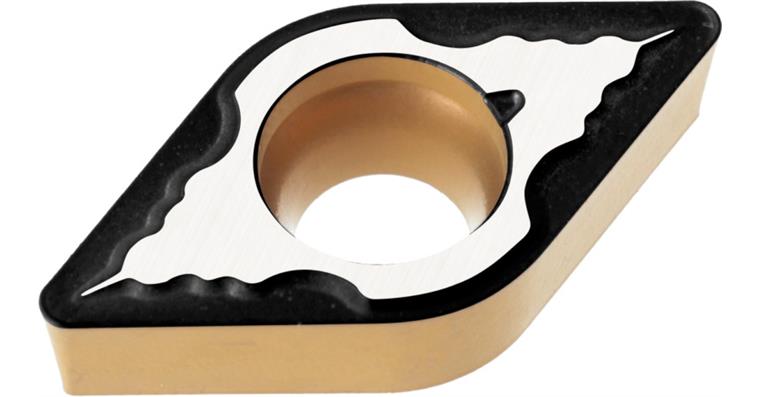

ISO-Code Rotating: DCMT 070204
Material to be processed: Steel | Cast iron
min./max. ap: 0.08-2.5 mm
f min./max.: 0.05-0.35 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,05 mm/r
max. f: 0,35 mm/r
max. ap: 2,5 mm
min. ap: 0,08 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 135-370 m/min

ATORN-No.: 12350764

EAN no.: 4066107043803
