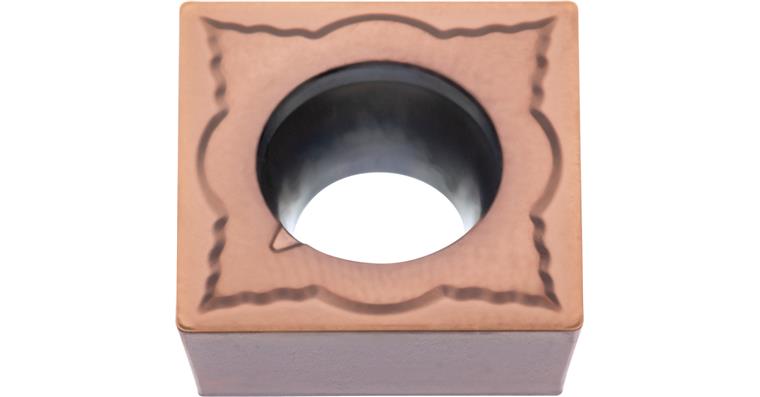

ATORN indexable insert SCMT 09T304-MM2 APM20T-1

ATORN indexable insert SCMT 09T304-MM2 APM20T-1

ATORN indexable insert SCMT 09T304-MM2 APM20T-1
Item no: 1018578 600

Online price:

Available in 6-8 working days.

Notes
Indexable insert SCMT 09T304-MM2 APM20T-1

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M
Machining conditions for indexable insert: Good
Carbide type ISO: M20
Carbide type: APM20T-1
ISO-Code Rotating: SCMT 09T304
min./max. ap: 0.15-2.55 mm
f min./max.: 0.1-0.4 mm/U
f min.: 0,1 mm/r
max. f: 0,4 mm/r
max. ap: 2,55 mm
min. ap: 0,15 mm
Chip breaker code: MM2
Min./max. Vc in stainless steel: 90-240 m/min
Min./max. Vc in special alloys: 20-160 m/min

ATORN-No.: 12350521

EAN no.: 4066107026400

Product Datasheet Datasheet cutting values
