Material to be processed: Steel | Stainless steel | Non-ferrous metal | Special alloy | Cast metal | Hardened steel
Brand: DORMER PRAMET

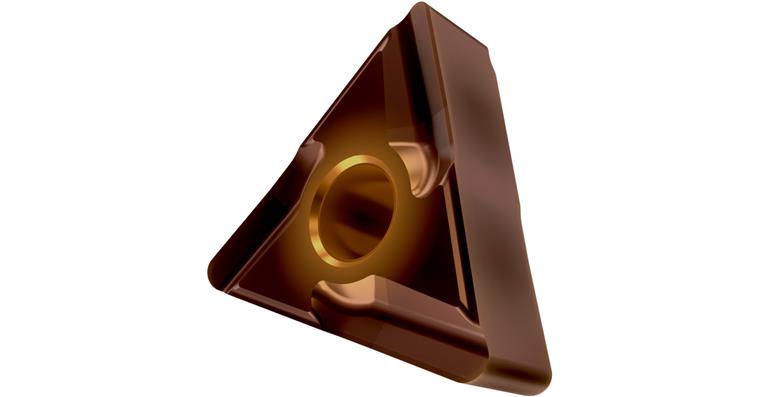

ISO-Code Rotating: TNMG 160404
Supply type: Medium finishing | Smoothing
Cutting material: SC
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Inner circle diameter (IC): 3,81 mm
Knife edge length (L): 16 mm
Mounting bore diameter (D1): 3,81 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: T8430
Chip breaker code: EL-SI
Coating: PVD
Materials group: P (primary application) | M (primary application) | N (secondary application) | S (secondary application) | K (secondary application) | H (secondary application)
Carbide type ISO: P20 | P40 | M20 | M35 | K25 | K40 | N15 | N25 | S15 | S25 | H15 | H20
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 180-185 m/min
Min./max. Vc in stainless steel: 95-100 m/min
Min./max. Vc in non-ferrous metals: 495-510 m/min
Min./max. Vc in special alloys: 35-40 m/min
min./max. ap: 1.2-1.5 mm
f min./max.: 0.18-0.35 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 7977137

EAN no.: 3603603817531
